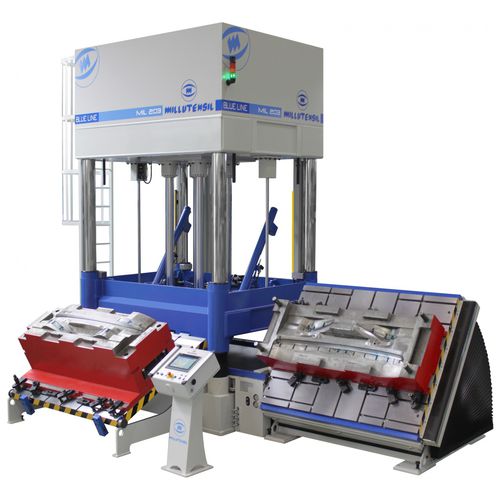

Oleodynamic press MIL20 series

testtryoutdie-spotting

The die & mould spotting presses of the traditional MIL/CLASSIC series feature the extensible plate exit on the side, towards the short side of the distance between columns. They are typically used in the plastics, rubber and die casting sectors. This solution allows tilting on the extensible plate short side up to 70° on both sides. In this version, the upper plate, too, is tilted on the short side from 100° to 180°. The MIL/CLASSIC series provides great advantages compared to other solutions with long side rotation Better working ergonomics, granting the operator to have easy access to any mould part without the use of platforms; Much shorter total press height above ground, which often reduces excess costs for foundations; Wide base press structure with greater stability; The two mould-halves are located on the same side, so operators have an overview of the whole mould and can work more comfortably MIL COMPACT SERIES The MIL/COMPACT series die & mould spotting presses are a riveting innovation to optimize adjustments in the die casting sector. They feature the extensible plate exit on the backside, towards the longest side of the gap between the columns. In this sector moulds are relatively small, but they are often equipped with internal sliding beds that are driven by very long auxiliary cylinders, considerably increasing the total dimensions of the mould overall. Therefore, the MIL/COMPACT series provides significant benefits: Carrying out adjusting operations on a smaller and therefore cheaper press with subsequent reduction of the investment amortization period; Handling of moulds with very long auxiliary cylinders without the need to disassemble them,
