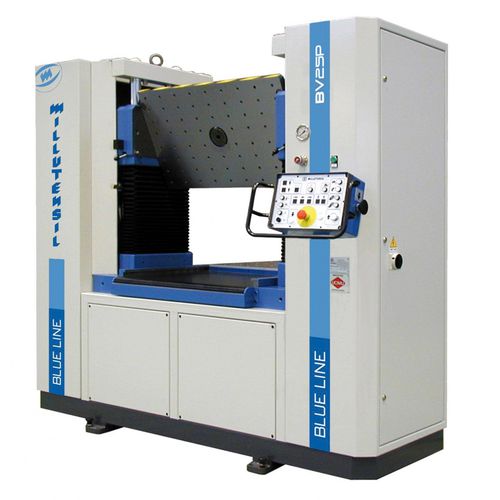

Oleodynamic press BV 25 P

assemblytestdie-spotting

The BV 25 P is the smallest version of the Millutensil’s spotting presses. Platen dimensions are 770×660 mm (31X25 inches). The max. clamping force is 180kN. The max. load capacity on lower plate is 2.500 kg, while on the upper is 800 kg. As all series, the BV 25 P series can also be equipped with all optional accessories. Hydraulic cylinders drive the lower extensible plate outside the columns in an easily accessible position for the work outside the press. It slides on roller bearings and is laterally guided by ball bearings, completely friction- and wear-free. In the final position, the plate comes down and is held by 4 hydraulic cylinders, thus completely leaning on specific ground support bands. The system guarantees high repeatability accuracy equal to ± 0,04 mm. Lower plate tilting by 75° or 90° only available on the E series Thanks to 2 hydraulic cylinders, the lower plate can be tilted up to 75° or 90°, on the short back side, to operate on the mould at an ergonomically better position. Tilting movements (and automatic locking) are controlled by the touch panel. The plate can be placed at any angle, giving the operator optimal access to the mould, with no need to bend, maximum comfort and safety.
