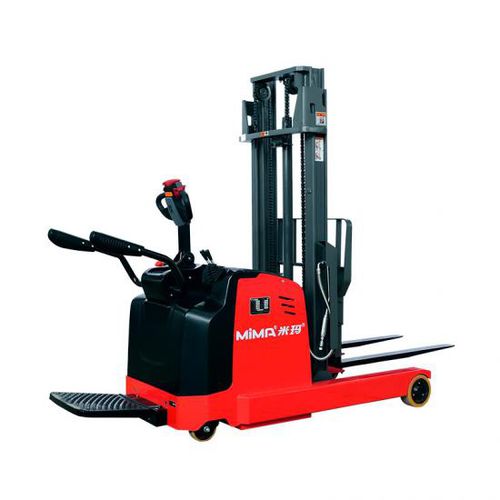

Battery-powered stacker truck MFA series
with rider platformtransportfor pallet

battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
Add to favorites
Compare this product


Characteristics

Energy
battery-powered
Operator
with rider platform
Applications
transport, for pallet, handling, narrow-aisle
Carrying capacity

1,500 kg, 2,000 kg
(3,306.9 lb, 4,409.2 lb)

Lifting height

3,000 mm
(118.11 in)

Fork width

100 mm
(3.9 in)

Fork length

1,070 mm
(42.13 in)

Fork thickness

35 mm, 40 mm
(1.38 in, 1.57 in)

Turning circle radius

1,800 mm, 1,985 mm
(70.9 in, 78.1 in)

Travel speed

4.5 km/h, 8 km/h
(2.8 mph, 4.97 mph)

Lifting speed

95 mm/s, 120 mm/s, 150 mm/s

Weight

2,100 kg, 2,200 kg
(4,629.71 lb, 4,850.17 lb)

Description

MFA Series of forklift truck with large forward stroke brings smaller channel experience, battery electric drive, maximum carrying capacity 2.0t. ●Horizontal handling and stacking of medium cargo; ●Medium and long distance transportation and stacking; ●Also can be used in closed pallet, pallet height from the ground is very small and shelves at the bottom of the leg space and other occasions. Applicable to: Medium storage density and high working turnover rate; Narrow aisle stacking; Main Features: 1.Maintenance-free high-power AC drive system, providing reliable driving power; 2.The standard CURTIS series controller is reliable and durable.AMP waterproof and dustproof plug-in, which provides reliable protection for the circuit and greatly reduces electrical faults; 3.Platform type, pure electronic steering, integrated control handle, safe, labor-saving, flexible operation; 4.The newly designed floating suspension system makes the steering operation more flexible and convenient; 5.The frame is made of high strength steel plate frame structure, with large residual bearing capacity and long service life.
