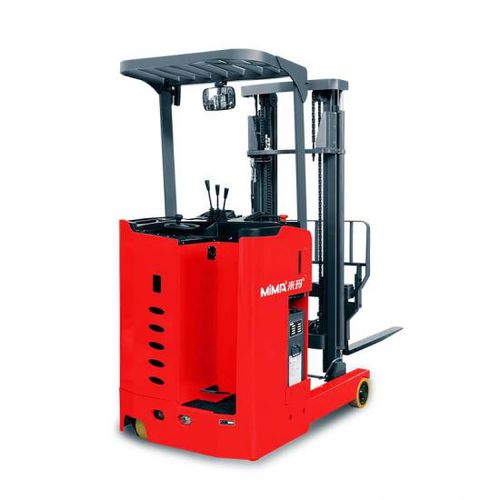

Battery-powered reach truck MF series
stand-onnarrow-aisle

battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
battery-powered reach truck
Add to favorites
Compare this product


Characteristics

Motor type
battery-powered
Operator
stand-on
Applications
narrow-aisle
Carrying capacity

1,000 kg, 1,200 kg, 1,500 kg
(2,204.6 lb, 2,645.5 lb, 3,306.9 lb)

Lifting height

3,000 mm, 5,000 mm
(118.11 in, 196.85 in)

Load center distance

500 mm
(19.7 in)

Weight without load

1,750 kg, 2,000 kg, 2,100 kg
(3,858.1 lb, 4,409.2 lb, 4,629.7 lb)

Turning circle radius

1,580 mm
(62.2 in)

Travel speed

6 km/h, 7 km/h, 8 km/h, 10 km/h
(3.7 mph, 4.3 mph, 5 mph, 6.2 mph)

Lifting speed

Min.: 110 mm/s

Max.: 320 mm/s

Lowering speed

Min.: 170 mm/s

Max.: 340 mm/s

Gradeability

8 %, 10 %

Description

The MF series is a stand on type reach truck with load 1.2T- 1.5T. The gantry can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency. Applicable to: Medium storage density, high turnover rate conditions; Stacking in narrower channels. Features: 1.Standard AC AC drive and EPS electric power steering, better feel and lower energy consumption; 2.Smaller body size with smaller turning radius and right angle stacking channels; 3.With the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators; 4.Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function; 5.Advanced Curtis controller, more stable and safer;
