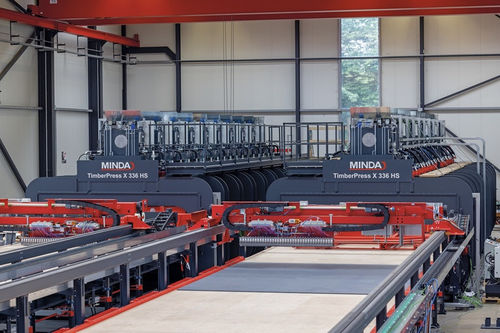

Hydraulic press TIMBERPRESS X SERIES

laminationautomaticvertical

With our cross laminated timber presses (CLT presses) series TimberPress X, we offer the ideal press technology for the production of cross laminated timber elements from cross-laminated solid wood layers. The solid wood layers can consist of joint-glued solid wood boards or loose lamellas/panels. Depending on the application, we use one of the following three series. With the TimberPress X 100, we press joint-glued solid wood panels into CLT press blanks, whereby the main press pressure is applied vertically. We use the TimberPress X 100pro version if joint-glued solid wood panels have already been made in the previous production step and if they also have window and/or door cut-outs. The TimberPress X 200 has a frontal or lateral hydraulic compression function in addition to the vertical main press pressure. Thus, the longitudinal or cross layers can consist of loose lamellas/panels and the process step "joint gluing / solid wood board production" is dropped for a part of the raw material. In addition to the small space requirement, advantages of this CLT press are the lower investment and operating costs. With the TimberPress X 300, we compress both the longitudinal and cross layers before pressing high-quality CLT boards with the vertical main press pressure. Both the longitudinal and the cross layers consist of loose lamellas/panels. The process step "joint gluing / solid wood panel production" is thus completely dropped.
