Loading system

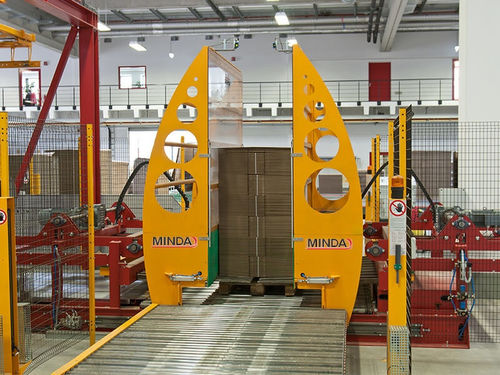

The pallet loading station allows positioning an entire stack of products onto a pallet as one unit behind a production area without pallets. The time saving compared to other palletizing solutions is considerable. The product stack is driven into the station and lifted by a skid unit. At the same time, the alignment walls move together to keep the stack together and to align it. An empty pallet is fed in crosswise to the infeed direction of the stack. This pallet can, for example, be provided by a MINDA empty pallet robot. After positioning the empty pallet, the stack is lowered onto it. This type of pallet loading is only used for very compact stacks of any kind. The design meets the customer’s requirements. The pallet loading station can therefore be used for Euro, industrial and special pallets. Benefits/ Advantages • Dimensions are adjustable • For stacking loads up to 4 t and higher • Precise and careful pallet loading • Palletizing accuracy ± 15 mm • Compact design • Can be combined with empty pallet feeder • Electric drives
