Hydraulic lift platform

workshop

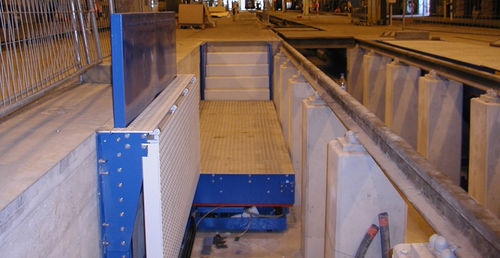

Lateral working pits are workstations located below the workshop level, from which assembly work as well as maintenance and repair work can be carried out on the bottom or at the side of rail-guided vehicles. Ergonomics and flexibility Serveral hydraulic scissor-type lifting tables can be installed inside the lateral working pits, which can lower a long area of the platform on both sides of the rail tracks. In this application we talk about 13 m, which are lowered to a depth of 950 mm. The middle section, with a depth of 1,600 mm, serves as accessto the pain pit, which is located between the rails. Due to different working levels, the personnel can work safely and more easily. Lateral pit opened In open condition, several working levels are provided. All scissor-type lifting tables on one side of the working pit are lowered to the bottom. The step-type scissors are formed into stairs and the central pit cover is folded downwards. The railing is extended. Thus, the maintenance staff reaches an optimal viewing and workingheight to carry our inspection tasks. Lateral working pit closed In closed condition all scissor-type lifting tables are extended and protected by hydraulically operated bolts. The step-type scissors build a flat surface to the floor and it is possible to drive on them, but they also provide working possibilites laterally at the vehicle. The central pit cover rests on the scissor-type lifting table and the railing is retracted. When closed, floor conveyors can drive on stairs, safety reilings and working platforms at the level of the platforms by automatically extending safety supports.
