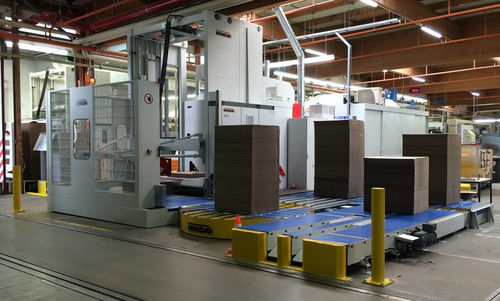

Vertical feeder ADVECTOR

continuouscartonsheet

The ADVECTOR ensures optimized sheet feeding to printing lines, inliners, flat-bed and rotary die cutters and digital printing machines by creating a continuous shingling sheet flow. With its extremely short installation length, due to the possibility of a lateral infeed, the ADVECTOR can be used almost everywhere - even under very constricted space conditions. This can also be realized with ADVECTORS that can be driven up. This creates more storage space and enables the machine operator to carry out a final quality check before the block is processed in the ADVECTOR. Unlike conventional solutions, the stacks are not raised but directly processed in small packages. This enables the operator to mark, for example, a damaged area in the stack in the touch panel, which should not be processed. The ADVECTOR removes the stack up to the marking and the operator can then take out the damaged sheets. Furthermore, this concept ensures highest throughput rates, as the stack change time is reduced compared to conventional applications. Residual sheet discharge and infeed of the new stack take place in parallel. The internal buffer on the lifting table and in front of the shingling gate bridge the time of the stack change. A hold-down device ensures that the separation process is trouble-free even with curved sheets. Thus, no sheets are pulled along unintentionally and subsequently the production process is not disturbed. Advantages • Easy handling for operators thanks to modern HMI touch panel • No lifting of unnecessary weights by pick-up from stacks in packages • Short installation length possible by lateral infeed
