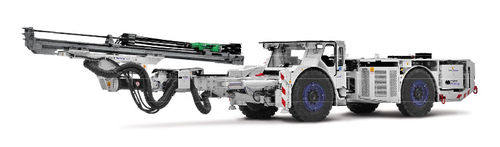

Jumbo drilling rig Face Master 1.7L

The rig features: hydraulically operated, ergonomic, “capsule” type operator’s cabin, the cabin system as well as the front frame is certified for transmission of loads at kinematics 60kJ front operator’s window complies with P8B according to EN-356 the cabin is equipped with air conditioning, which works both during transportation and with mine’s power grid of 500V the cabin is also equipped with particle filter additionally, hydrogen sulfide filter has been installed in the cabin in order to protect the operator against gas leaks, which often occur in KGHM’s headings, working unit has been based on an already proven design of B40HD boom and Montabert’s HC109 drill, equipped with water swivel with higher resistance to the aggressive flushing in order to ensure excellent traction, the rig is equipped with main pivot with double rotation joint (vertical with horizontal oscillation).Thanks to this solution it is possible to obtain very good stability during maneuvering as well as to use the rig in reduced width of headings.
