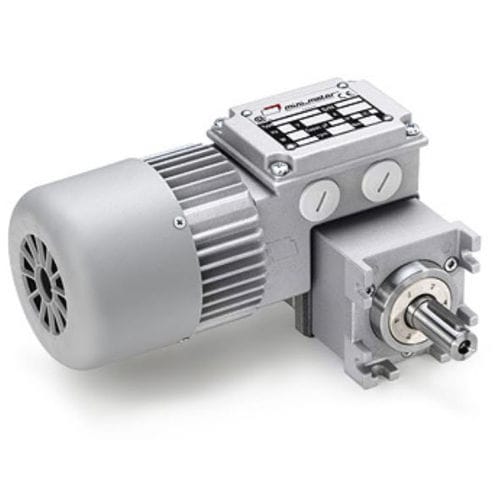

Worm gear-motor MCEthree-phasesingle-phaseasynchronous
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, single-phase, asynchronous
- Type
- planetary, worm
- Shaft orientation
- right angle
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 230 V, 400 V
- Torque
- 20 - 50 Nm
- Other characteristics
- 4-pole, aluminum frame, IP65
- Gear ratio
Min.: 37.5 unit
Max.: 400 unit
Description
WORM GEARED MOTORS PLUS FINAL PLANETARY REDUCTION STAGE.
Single-phase and threephase motors from 14 to 180 W. Centre distance 26 mm.
MOTOR:
asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.
GEAR UNIT:
with die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made inspecial rubber for high temperatures. 9 gear ratios (i) available, from 37.5 to 400.
Rated torque 23.5 Nm. Version B3 or B5. B5/S left version – B5/D right version.
