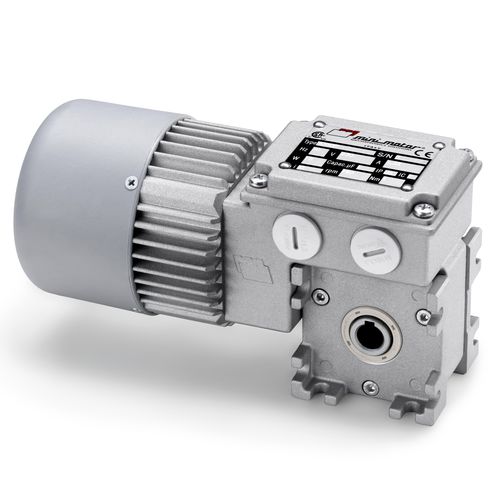

Worm gear-motor MCthree-phasesingle-phaseasynchronous
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, single-phase, asynchronous
- Type
- worm
- Shaft orientation
- right angle
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 230 V, 400 V
- Torque
- 5 - 10 Nm
- Other characteristics
- 4-pole, aluminum frame, IP65
- Gear ratio
Max.: 80 unit
Min.: 5 unit
Description
Worm geared motors. Single-phase and three-phase motors from 14 to 180 W. Centre Distance 26 mm.
MOTOR:
asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.
GEAR UNIT:
with die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures.
10 gear ratios (i) available, from 5 to 80. Rated torque 13 Nm. Version B3 or B5. B5/S left version – B5/D right version.
