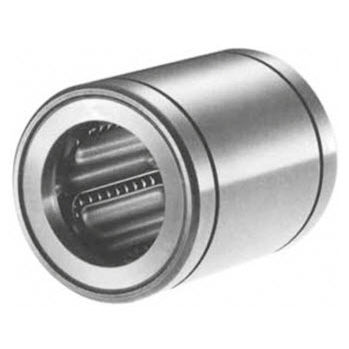

Linear ball bearing 10.1320/0stainless steelclosed
Add to favorites
Compare this product
Characteristics
- Options
- ball bearing
- Material
- stainless steel
- Configuration
- closed
Description
Techn. Data / Items supplied
Steel, bright
Weight = 0.060 kg/piece
Shaft diameter (dr)
16 mm
Outer diameter (D) - 26 mm
Length (L) - 36 mm
Groove distance (B) - 24.9 mm
Groove distance (W) - 1.3 mm
Groove diameter (D1) - 24.9 mm
Number of bail row - 4
Eccentricity - 12
Load rating dynamic (C) - 578 N
Load rating static (C0) - 892 N
Operating température
-20 / +110 °C
