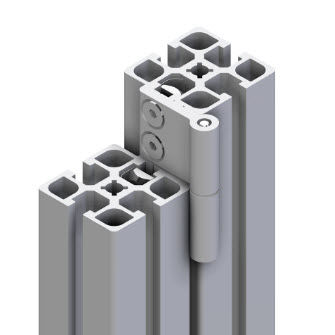

Pivot hinge 21.1378/0aluminumscrew-in270°
Add to favorites
Compare this product
Characteristics
- Type
- pivot
- Material
- aluminum
- Installation
- screw-in
- Opening angle
- 270°
- Applications
- door
- Other characteristics
- adjustable
- Length
32 mm
(1.26 in)- Width
72 mm
(2.835 in)- Thickness
12 mm
(0.472 in)
Description
Techn. Data / Items supplied
• - Aluminium, anodized E6/EV1
• - with stainless steel shaft
• - With fastening material steel, zinc plated
• - load capacity up to 400 N
• - Weight = 0.089 kg/piece
Applications
• - Detachable doors, hatches, moving parts on profiles 45
• - Guard unit fixing angle
• - If the hinges are arranged in the opposite direction, non-detachable and horizontally mounted structures can also be produced
• - Connection of profiles 45 at various angles
Assembly
• - Fasten to profile groove with supplied hardware.
• - The hinge profile 5GB part no. 20.0093/0 (not anodized) is available for the production of hinges in variable lengths and bore spacings as well as piano hinges
