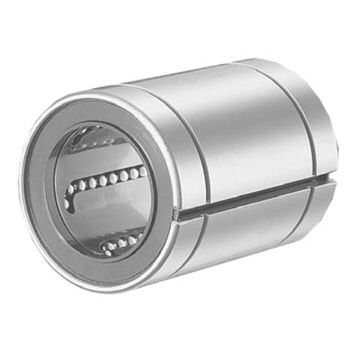

Linear ball bearing 10.1271/0

self-aligningstainless steelclosed

Techn. Data / Items supplied Steel, bright Weight = 0.040 kg/piece Shaft diameter (dr) 12 mm Outer diameter (D) - 22 mm Length (L) - 32 mm Groove distance (B) - 22.9 mm Groove distance (W) - 1.3 mm Groove diameter (D1) - 21 mm Slit width (h) - 1.5 mm Number of bail row - 4 Eccentricity - 12 Load rating dynamic (C) - 510 N Load rating static (C0) - 784 N Operating température -20 / +80 °C
