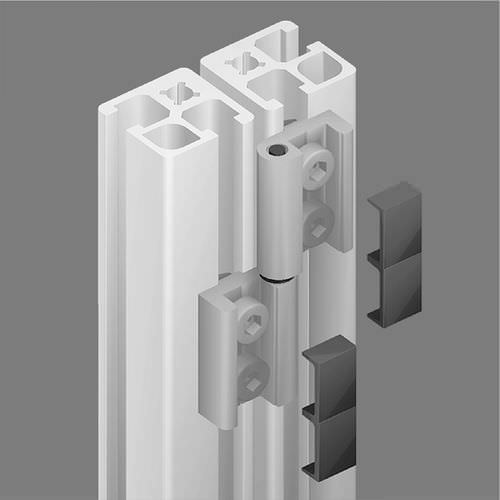

Spring hinge 21.1100/0aluminumscrew-in110°
Add to favorites
Compare this product
Characteristics
- Type
- spring
- Material
- aluminum
- Installation
- screw-in
- Opening angle
- 110°
- Applications
- for aluminum profiles
- Other characteristics
- removable, detachable
- Length
80 mm
(3.15 in)- Width
46.5 mm
(1.831 in)- Thickness
12 mm
(0.472 in)
Description
Techn. Data / Items supplied
• - Aluminium, anodized E6/EV1
• - with stainless steel shaft
• - With fastening material steel, zinc plated
• - End caps
• - Spring plate design part no. 21.1100/7
• - load capacity up to 400 N
• - Weight = 0.110 kg/piece
Applications
• - Detachable doors, hatches, surface elements in a vertical arrangement
• - If the hinges are arranged in the opposite direction, non-detachable and horizontally mounted structures can also be produced
• - Connection of profiles 19 at various angles
Assembly
• - Fasten to profile groove with supplied hardware.
• - For fixing directly on surface elements or on profile surfaces we deliver hinge 19 without fixing element part no. 21.1100/2
• - 1: lift removable
• - 2: Arrangement is not detachable
