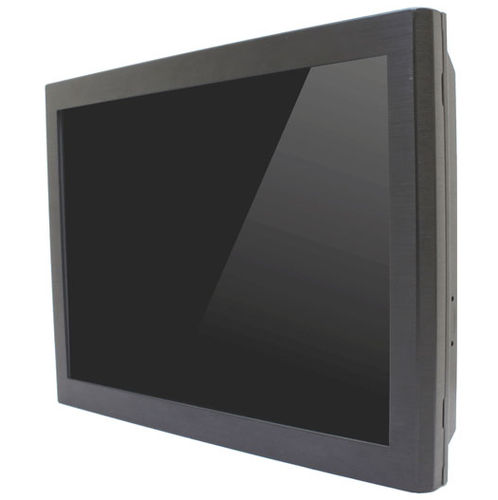

LCD panel PC D150-B series

LED backlighttouch screen15"

D150-B is a 15 inch all in one panel pc system with either Intel Core-i based platform for rich performance or Intel Atom based platform for power-efficiency and fanless condition. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front. All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications. MECHANICAL - - MOUNTING - VESA 100 / Stand DIMENSIONS (W X D X H) - 280 x 355 x 55 mm WEIGHT - 5kg (11.1 lb) MAX. COLORS - 16M (8 bit / color) LUMINANCE (cd/m2) - 350 VIEWING ANGLE (H/V) - 160° / 145° Cache, up to 2.24 GHz) CHIPSET - Intel® SoC Integrated SYSTEM MEMORY - DDR3L 1333 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) ETHERNET - 2 x Realtek® RTL8111G Giga LAN I/O PORT - 2 x USB 3.0 / 2 x RJ45 / 2 x USB 2.0 / 1 x DVI / 1 x Line-in / 2 x PS/2 / 4 x RS232 / 1 x DC Jack / 1 x VGA / 1 x Line-out / 1 x Mic-in EXPANSION SLOT - Mini PCIe Half size (PCIe / USB) / Mini PCIe Full size (PCIe / USB / SATA) STORAGE - 1 x SATA 2.5” HDD / SSD bay STEREO SPEAKER - 2 x 2W
