Filter unit MDA

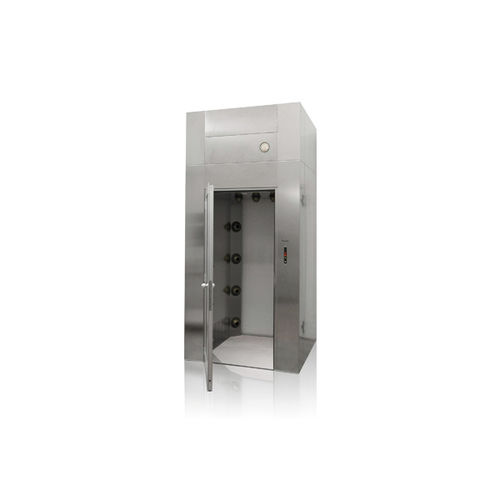

The air shower is an autonomous structure that does not interfere with the cleanroom system, to be positioned so as to intercept the transit section. The cabinet structure, without a frame, is made of self-supporting double-walled panels in painted sheet metal or AISI 304 stainless steel with a seamless internal surface. double-walled self-supporting panels made of painted sheet metal or AISI 304 stainless steel with an internal surface without discontinuity, complete with two doors with anodised aluminium hinges and a tempered or stratified glass front. LED lighting is positioned on the ceiling. Ventilation is by means of an original MUM centrifugal, axial flow propeller which, being able to directly feed the final HEPA H13 filter, reduces the vertical footprint to the advantage of transport and use, of the unit which can be delivered fully assembled. Individually adjustable nozzles, arranged on the ceiling and in the corners between the vertical sides, direct the jets at high speed with trajectories interlaced with each other. The air intake is positioned on the floor with wall grilles or on a perforated and raised floor.
