Portable thickness gauge MT series
coatingwallsteel

portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
coating, wall, steel
Technology
digital display, ultrasonic
Other characteristics
handheld, NDT, echo-to-echo, single echo
Measuring range

Max.: 600 mm
(23.62 in)

Min.: 0.65 mm
(0.03 in)

Description

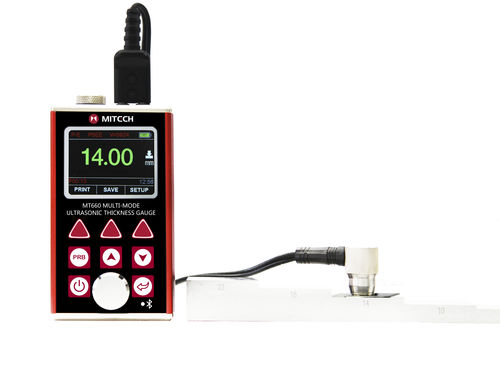

MT660 Multi-mode Ultrasonic Thickness Gauge Measuring range:0.65-600mm(P-E),3-100mm(E-E) Resolution Accuracy:0.1/0.01/0.001mm Communication storage:USB. Bluetooth Working time:30h (default brightness setting) Main unit weight:317g Dimensions: 120*67*31mm Package dimensions:31.5*24.5*8.5cm Total weight:1.5kg High cost-effective A necessary instrument of improving production rate and saving cost Through-coating, energy-save 320*240 colorful LCD, display results dearly in strong/poor light. PE,EE two modes. In E-E mode, it can test the thickness directly without clearing the surface of workpiece Splint plug Reduce the faults in use effectively. Focus on innovation with two modes Zéro-point,two-point calibration and reverse speed,0.1/0.01/0.001 three resolutions, USB port can connect to PC. NDT test, eliminate hidden dangers Detecting various pipeline and the thickness of inner wall of pressure container.
