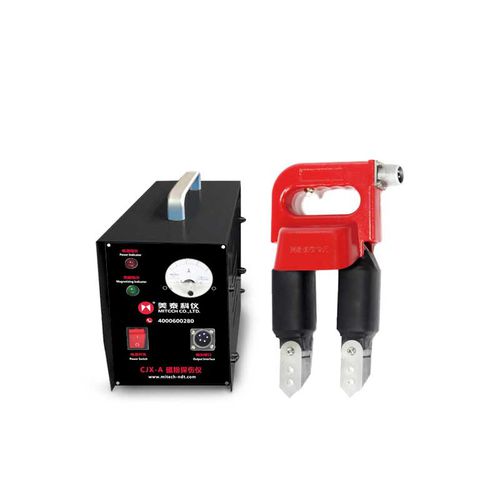

Magnetic flaw detector C series

portable

CJX-A Magnetic Flaw Detector Measuring range：≥45N(no less than 5kg) Resolution Accuracy：clearly show the artificial notch of type A 30/100 standard Communication storage： Working time：continuous work Main unit weight： Dimensions： Package dimensions：42*33.5*41cm Total weight：15kg Product Overview MITECH CJX-A multifunctional magnetic flaw detector is the self-designed multifunctional magnetic flaw detector absorbed the advantages of similar products at home and abroad. With small size, light weight, easy operation, multifunction in one unit. The detector can equip A, D, O three types of probes to realize the functions of magnetic clamp detection, electromagnetic yoke detection, ring detection. It is the necessary detector to do flaw testing, quality control, safety check, life evaluation in the fields of petrol, chemicals, metallurgy, shipbuilding, aviation, railway etc.. Function & application It is widely used in the industry of aircraft manufacturing, boiler and pressure vessel, electric, oil field, shipbuilding, combustion engine parts, mine, machinery, standard parts, oil pump, vehicle parts, bridging, chemical, railway, large mechanical components, steel structure etc. Working Principle Magnetize, put the workpiece into high-intensity magnetic field, connect electric to make it magnetized, if there are flaws (crack,slag) in or near the surface, there will be a leakage around the flaws. Put good quality magnetic powder(usually the magnetic iron oxide powder)on the object, magnetic powder will gather together near the leaked magnetic field, piled up to form visible traces of magnetic powder Working Conditions
