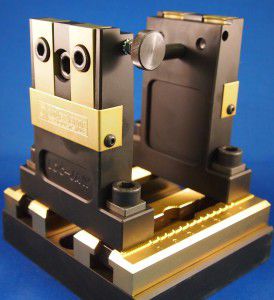

Workpiece clamping jaw Loc-Jaw®

mechanical

Loc-Jaw® System The Loc-Jaw® system was conceived to simplify, and allow greater tooling access and more versatility securing your parts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed. Unique design allows access to bottom of workpiece Ability to hold parts from .500″ to 4.00″ or up to 1 Meter with optional extension kit 6,000+ lbs of holding force gripping on only .125″ of material Knife-Edge grippers designed to penetrate into material up to .060″ deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2. Centering Disk included for Loc-Jaw® base Set of locating pins included. (Liners installed in base) Blunt-edge grippers with #2 or #3 grit carbinite coating are recommended for high speed machining on hard alloys
