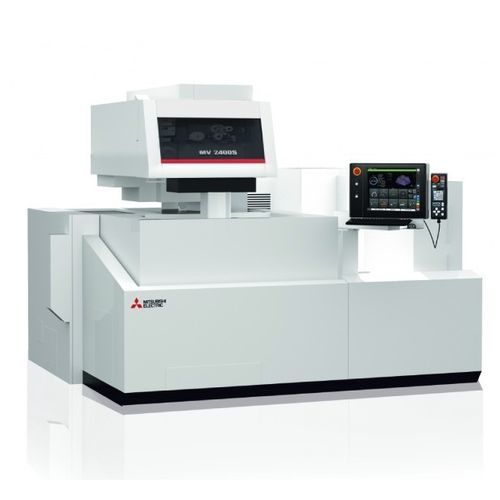

Wire electrical discharge machine MV-S series

CNCprecisionfor large parts

The machine results you expect – in a playful, transparent, efficient and reliable process The MV-S series is made for high cutting speeds with a combination of tight tolerances and a low power consumption. With its non-contact Tubular drive and modern technologies it optimizes the wire- and power consumption. Therefore these machines ensure economic benefits which pay off year after year. Finally they are ideal for a reliable man-free operation due to the „Intelligent AT“ wire threading. With a general accuracy of ≥ 3 µm and a roughness down to Ra 0.3 µm they can be used for the following production areas: • Mold & die • Medical (implants, tools etc.) • Fine blanking • Additive industries (cut-off) The specially selected Meehanite casting ensures durability that can be measured in decades and copes with high workpiece weights day after day. The rugged machine bed takes even the severest ­punishment in its stride – unlike many a less expensive material. What was it about conventional drive systems that bothered developers at Mitsubishi Electric? The need for lubrication, the friction and frictional heat, power consumption, backlash, the cogging moment and above all the possible wear. Only a non-­contact drive overcomes these drawbacks from the outset and is thus an assurance of better results and enhanced dependability over decades. The three-sided work table is ergonomically built on the Z = 0 level. This way workpieces can be perfectly positioned, even without clamping elements. High-grade stainless steel components and the stainless steel tank ensure dependability and maintenance-freedom.
