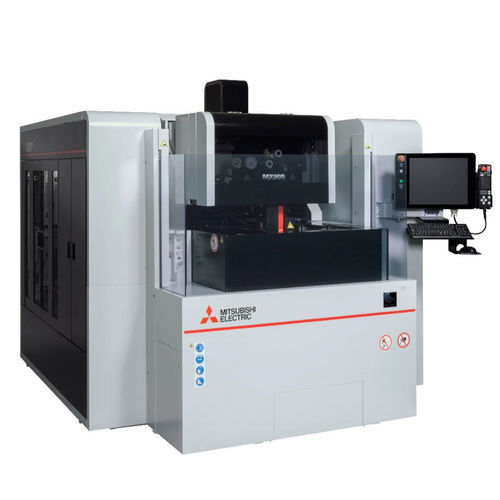

Wire electrical discharge machine MX900

high-speedprecisionCNC

The MX900 is Mitsubishi Electric’s cutting-edge solution for high-performance wire EDM machining in oil. Designed to meet the most demanding requirements, the MX900 delivers exceptional precision, smoother surfaces, and enhanced efficiency in every cut. With groundbreaking technology and superior control, it’s the ultimate machine for industries that require flawless precision. The MX900 has a traveling column design – proven for maximum precision with medium and heavy loads. The solid mechanical engineering as a firstclass basis guarantees precision for the life of the machine. The wire-cutting machine stands within a fully enclosed housing – but on its own machine feet. All additional units are arranged on a surrounding floor slab and are fully decoupled from the machine. This eliminates disturbance caused by vibration and thermal effects on the machine. The exceptionally heavy-duty machine bed, only the best, top-flight linear guides and precision assembly ensure the best wire-cutting results in the long term. The slides of the linear guides come with play-free bearings without contact between the ball bearings during movement – for maximum smoothness of motion and almost no rolling resistance. • Taper angle (workpiece height) in °/mm : Max. 15° • Max. workpiece dimensions (W x D x H) in mm : 500 x 500 x 100 • Max. workpiece weight in kg : 300 • Table dimensions (W x D) in mm : 560 x 505 • Table layout : Hardened 4-sided table • Possible wire diameters in mm : 0.05 – 0.2 • Wire spool capacity in kg : 10 • Automatic wire threader / wire chopper : Yes • Overall dimensions (W x D x H) in mm : 2335 x 2965 x 2203 • Machine weight in kg : 3400
