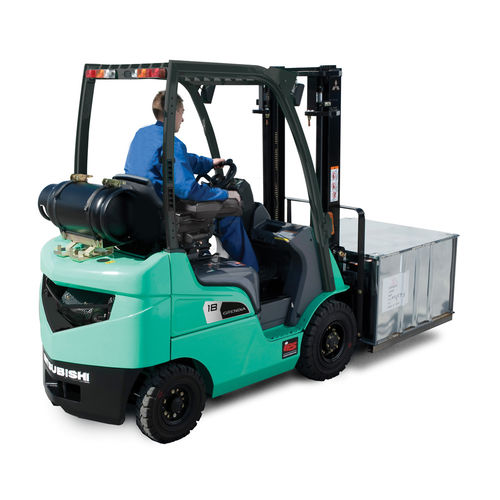

LPG forklift truck FG15-35(C)N Series
ride-onprecisioncounterbalanced

LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
LPG forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
precision
Other characteristics
counterbalanced
Carrying capacity

1,500 kg, 1,750 kg, 2,000 kg, 2,500 kg, 3,500 kg
(3,306.9 lb, 3,858.1 lb, 4,409.2 lb, 5,511.6 lb, 7,716.2 lb)

Lifting height

3,270 m, 3,290 m, 3,300 m
(10728'04" , 10793'11" , 10826'09" )

Overall width

Max.: 1,690 mm
(66.5 in)

Min.: 1,065 mm
(41.9 in)

Overall length

Max.: 3,865 mm
(152.2 in)

Min.: 3,330 mm
(131.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 4,630 kg
(10,207.4 lb)

Min.: 2,490 kg
(5,489.5 lb)

Axle loading with maximum load front

Max.: 71,800 kg
(158,291.9 lb)

Min.: 3,510 kg
(7,738.2 lb)

Axle loading with maximum load rear

Max.: 950 kg
(2,094.4 lb)

Min.: 460 kg
(1,014.1 lb)

Axle loading without load front

Max.: 1,710 kg
(3,769.9 lb)

Min.: 990 kg
(2,182.6 lb)

Axle loading without load rear

Max.: 3,000 kg
(6,613.9 lb)

Min.: 1,430 kg
(3,152.6 lb)

Height of mast when lowered

2,140 mm, 2,150 mm, 2,170 mm, 2,300 mm
(84.3 in, 84.6 in, 85.4 in, 90.6 in)

Free lift

115 mm, 140 mm, 145 mm
(4.5 in, 5.5 in, 5.7 in)

Overall height with mast raised

4,330 mm, 4,340 mm, 4,360 mm
(170.5 in, 170.9 in, 171.7 in)

Height to top of overhead guard

2,140 mm, 2,145 mm, 2,165 mm, 2,175 mm
(84.3 in, 84.4 in, 85.2 in, 85.6 in)

Seat height

930 mm, 940 mm, 990 mm
(36.6 in, 37 in, 39 in)

Tow couplig height

290 mm, 310 mm, 330 mm, 340 mm
(11.4 in, 12.2 in, 13 in, 13.4 in)

Length to fork face

Max.: 2,795 mm
(110 in)

Min.: 2,260 mm
(89 in)

Fork carriage width

920 mm, 1,000 mm
(36.2 in, 39.4 in)

Ground clearance under mast with load

110 mm, 115 mm, 135 mm, 150 mm
(4.3 in, 4.5 in, 5.3 in, 5.9 in)

Ground clearance at center of wheelbase with load

135 mm, 165 mm, 170 mm
(5.3 in, 6.5 in, 6.7 in)

Turning circle radius

Max.: 2,440 mm
(96.1 in)

Min.: 1,950 mm
(76.8 in)

Minimum distance between centres of rotation

555 mm, 715 mm, 780 mm
(21.9 in, 28.1 in, 30.7 in)

Travel speed

19 km/h, 19.5 km/h
(11.8 mph, 12.1 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.4 m/s
(1.312 ft/s)

Rated drawbar pull

Max.: 21,800 N

Min.: 16,700 N

Gradeability

Max.: 93 %

Min.: 26 %

Rated output

41 kW, 46.9 kW
(55.7 hp, 63.8 hp)

Rated speed

2,700 rpm
(16,964.6 rad.min-1)

Cubic capacity

2,065 cm³, 2,488 cm³
(69.8 US fl oz, 84.1 US fl oz)

Description

Developed to help your operator achieve maximum productivity, while minimising running costs, GRENDiA ES sets the highest standards for IC engine counterbalance forklift trucks. With its exceptional fuel economy, durable components and low-maintenance design, GRENDiA makes perfect business sense. What's more, it comes with a package of advanced features, fitted as standard, that offers true value for money. Fast, stable and exceptionally powerful, GRENDiA forklift trucks offer a potent combination of high efficiency and low emissions in line with Euro Stage V regulations. To that, Mitsubishi Forklift Trucks has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions. Integrated Presence System (IPS2) Integrated Presence System (IPS2)Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Vehicle control module This high-power 'brain' allows multiple engine and electronic functions to occur simultaneously, constantly adjusting and optimising performance: ensuring industry-leading power and fuel consumption. Sealed chassis with full belly guard and inner wheel covers Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles.
