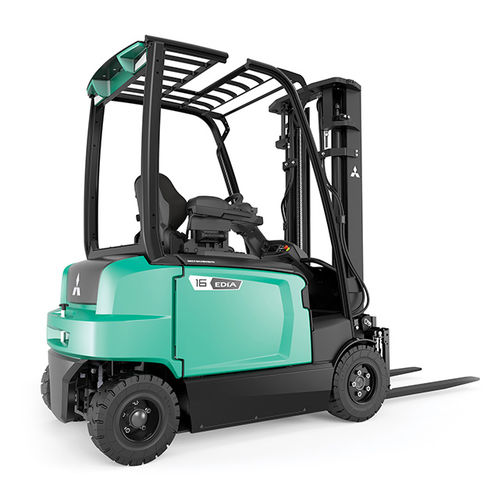

Electric forklift truck FB16-20(C)N2 Series
ride-onindustrial4-wheel

Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 2
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 3
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 4
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 5
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 6
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 7
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 8
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 9
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 10
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 11
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 12
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 13
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 14
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 15
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 16
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 17
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 18
Electric forklift truck - FB16-20(C)N2 Series - Mitsubishi Forklift Trucks - ride-on / industrial / 4-wheel - image - 19
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
industrial
Other characteristics
4-wheel, counterbalanced, compact
Carrying capacity

1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

3,290 m
(10793'11" )

Overall width

1,090 mm, 1,140 mm
(42.9 in, 44.9 in)

Overall length

3,152 mm, 3,260 mm, 3,275 mm
(124.1 in, 128.3 in, 128.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,944 kg, 2,957 kg, 3,097 kg, 3,114 kg, 3,287 kg
(6,490.4 lb, 6,519.1 lb, 6,827.7 lb, 6,865.2 lb, 7,246.6 lb)

Axle loading with maximum load front

3,990 kg, 4,008 kg, 4,295 kg, 4,311 kg, 4,668 kg
(8,796.4 lb, 8,836.1 lb, 9,468.9 lb, 9,504.1 lb, 10,291.2 lb)

Axle loading with maximum load rear

550 kg, 554 kg, 603 kg, 620 kg
(1,212.5 lb, 1,221.4 lb, 1,329.4 lb, 1,366.9 lb)

Axle loading without load front

1,422 kg, 1,484 kg, 1,510 kg, 1,525 kg
(3,135 lb, 3,271.7 lb, 3,329 lb, 3,362 lb)

Axle loading without load rear

1,448 kg, 1,522 kg, 1,613 kg, 1,692 kg, 1,762 kg
(3,192.3 lb, 3,355.4 lb, 3,556.1 lb, 3,730.2 lb, 3,884.5 lb)

Height of mast when lowered

2,125 mm
(83.7 in)

Free lift

80 mm
(3.1 in)

Overall height with mast raised

4,335 mm
(170.7 in)

Height to top of overhead guard

2,050 mm
(80.7 in)

Seat height

1,035 mm
(40.7 in)

Tow couplig height

520 mm
(20.5 in)

Length to fork face

2,002 mm, 2,110 mm, 2,125 mm
(78.8 in, 83.1 in, 83.7 in)

Fork carriage width

920 mm
(36.2 in)

Ground clearance under mast with load

95 mm
(3.7 in)

Ground clearance at center of wheelbase with load

95 mm
(3.7 in)

Turning circle radius

1,662 mm, 1,770 mm
(65.4 in, 69.7 in)

Travel speed

17 km/h
(10.6 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Lowering speed

0.6 m/s
(1.969 ft/s)

Rated drawbar pull

Max.: 5,200 N

Min.: 4,700 N

Gradeability

Max.: 25 %

Min.: 12 %

Rated output

10 kW
(13.6 hp)

Maximum operating pressure

210 bar
(3,045.8 psi)

Oil flow

30 l/min
(7.9 us gal/min)

Noise level

65 dB

Description

Smart. Safe. Agile. EDiA EM is a lot of truck in a compact package. Legendary Mitsubishi Forklift Trucks engineering, exceptional ergonomics, and cutting edge technology - like AutoBoost and Sensitive Drive System+ (SDS+) - combine to make EDiA a favourite of drivers and businesses alike. These electric trucks offer unmatched manoeuvrability for efficient, highly productive working with incredibly tight steer angles - including the option of time-saving 360-degree steering on the three-wheel models. The intelligent systems at the heart of the truck work to perfectly match the driver, offering precise, consistent performance that's tailored to the individual operator. Sensitive Drive System+ (SDS+) This driver-assist system responds intuitively to the individual operator's input - altering the performance characteristics for greater productivity and safety. Intelligent Cornering System Intelligent Cornering SystemAutomatically adjusts truck speed according to steer angle for increased operator and site safety, improved productivity and reduced tyre wear. Mini steering wheel with floating armrest This ergonomically adjustable control setup makes operating far more comfortable for the driver during long shifts. This not only minimises fatigue, keeping them more focused and productive, but reduces the risk of RSI and other strains in the neck and shoulders, a common cause of driver absence which comes with related costs. Automatic Hill Hold Automatic Hill HoldAHH prevents rollback even when fully loaded on very steep ramps. This makes for safer and faster loading/unloading. Operator safety is increased while improving productivity and reducing product damage.
