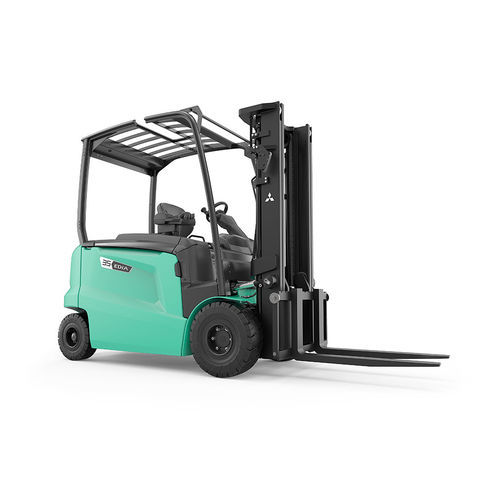

Electric forklift truck FB25-35A(C)N Series
ride-onindustrial4-wheel

electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
industrial
Other characteristics
4-wheel, counterweight
Carrying capacity

2,500 kg, 3,000 kg, 3,500 kg
(5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

3,270 mm, 3,300 mm
(129.92 in, 10,728.35 in)

Overall width

1,190 mm
(46.9 in)

Overall length

3,459 mm, 3,487 mm, 3,600 mm, 3,628 mm
(136.2 in, 137.3 in, 141.7 in, 142.8 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,584 kg, 4,737 kg, 5,222 kg, 5,230 kg, 5,654 kg
(10,106 lb, 10,443.3 lb, 11,512.5 lb, 11,530.2 lb, 12,464.9 lb)

Axle loading with maximum load front

6,296 kg, 6,301 kg, 7,348 kg, 7,351 kg, 8,183 kg
(13,880.3 lb, 13,891.3 lb, 16,199.6 lb, 16,206.2 lb, 18,040.4 lb)

Axle loading with maximum load rear

788 kg, 870 kg, 882 kg, 937 kg, 971 kg
(1,737.2 lb, 1,918 lb, 1,944.5 lb, 2,065.7 lb, 2,140.7 lb)

Axle loading without load front

2,256 kg, 2,390 kg, 2,450 kg, 2,607 kg, 2,651 kg
(4,973.6 lb, 5,269 lb, 5,401.3 lb, 5,747.5 lb, 5,844.5 lb)

Axle loading without load rear

2,328 kg, 2,347 kg, 2,623 kg, 2,771 kg, 3,002 kg
(5,132.4 lb, 5,174.2 lb, 5,782.7 lb, 6,109 lb, 6,618.3 lb)

Height of mast when lowered

2,145 mm, 2,165 mm, 2,291 mm
(84.4 in, 85.2 in, 90.2 in)

Free lift

100 mm
(3.9 in)

Overall height with mast raised

4,325 mm, 4,345 mm, 4,355 mm
(170.3 in, 171.1 in, 171.5 in)

Height to top of overhead guard

2,240 mm
(88.2 in)

Seat height

1,130 mm
(44.5 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

2,389 mm, 2,417 mm, 2,530 mm, 2,558 mm
(94.1 in, 95.2 in, 99.6 in, 100.7 in)

Fork carriage width

1,000 mm
(39.4 in)

Ground clearance under mast with load

105 mm, 115 mm
(4.1 in, 4.5 in)

Ground clearance at center of wheelbase with load

122 mm
(4.8 in)

Turning circle radius

1,920 mm, 2,064 mm
(75.6 in, 81.3 in)

Minimum distance between centres of rotation

160 mm
(6.3 in)

Travel speed

18 km/h, 20 km/h
(11.2 mph, 12.4 mph)

Lifting speed

0.5 m/s, 0.6 m/s, 0.7 m/s
(1.64 ft/s, 1.969 ft/s, 2.297 ft/s)

Lowering speed

0.6 m/s
(1.969 ft/s)

Rated drawbar pull

Max.: 9,700 N

Min.: 8,950 N

Gradeability

Max.: 20 %

Min.: 11 %

Rated output

20.8 kW
(28.3 hp)

Maximum operating pressure

185 bar, 205 bar
(2,683.2 psi, 2,973.3 psi)

Oil flow

30 l/min
(7.9 us gal/min)

Noise level

65 dB

Description

Everything about EDiA EX inspires confidence. Our design team worked to build something that's robust yet nimble, technologically advanced yet completely intuitive to control. EDiA gives you confidence to do the job knowing it'll always be up to the task, every time. With four-wheel steering and impressive residual capacities you get big-truck performance that works in tight spaces. And AutoBoost means you'll never feel like you're lacking power. But it's not just about performance, it's about safety too. From the mast to the dashboard to the counterweight, every part has been refined to maximise the driver's all-round view of the task. No gimmicks, just great design. Smart systems work with the driver's capabilities and the current load to adjust the response to the current situation - for example, lifting and lowering is always smooth and steady thanks to the Adaptive Lift Control system. For years our forklifts have been the operator's favourite. With a choice of intuitive control schemes options, different operator modes, a highly adjustable cabin, and countless other features, each operator can have the EDiA EX they want, with a setup that feels completely natural to them the second they sit in the cab. A perfectly tailored setup makes a shift more comfortable, more efficient, and more productive. It's all about inspiring confidence. Four Wheel Steering (4WS) Four Wheel Steering (4WS)This gives better grip and manoeuvrability, particularly in tight spaces, as the truck can turn quickly and easily on the spot.
