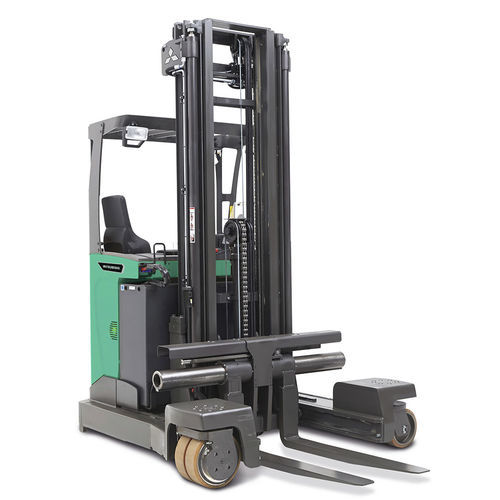

Electric reach truck RBM20-25N3 Series
ride-onhandlingstorage

Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 2
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 3
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 4
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 5
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 6
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 7
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 8
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 9
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 10
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 11
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 12
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 13
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 14
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 15
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 16
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 17
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 18
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 19
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 20
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 21
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 22
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 23
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 24
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 25
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 26
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 27
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 28
Electric reach truck - RBM20-25N3 Series - Mitsubishi Forklift Trucks - ride-on / handling / storage - image - 29
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, storage, pallet
Carrying capacity

2,000 kg, 2,500 kg
(4,409.2 lb, 5,511.6 lb)

Lifting height

9.7 m
(31'09" )

Overall width

1,498 mm, 1,744 mm
(59 in, 68.7 in)

Overall length

2,473 mm, 2,555 mm
(97.4 in, 100.6 in)

Load center distance

600 mm
(23.6 in)

Weight without load

4,360 kg, 4,960 kg
(9,612.2 lb, 10,934.9 lb)

Axle loading without load front

2,550 kg, 2,880 kg
(5,621.8 lb, 6,349.3 lb)

Axle loading without load rear

1,810 kg, 2,080 kg
(3,990.4 lb, 4,585.6 lb)

Height to top of overhead guard

2,215 mm
(87.2 in)

Seat height

1,087 mm
(42.8 in)

Length to fork face

1,323 mm, 1,405 mm
(52.1 in, 55.3 in)

Fork carriage width

1,500 mm, 2,170 mm
(59.1 in, 85.4 in)

Ground clearance at center of wheelbase with load

80 mm
(3.1 in)

Turning circle radius

1,772 mm, 1,932 mm
(69.8 in, 76.1 in)

Travel speed

13 km/h
(8.1 mph)

Lifting speed

0.3 m/s, 0.5 m/s, 0.6 m/s
(0.984 ft/s, 1.64 ft/s, 1.969 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

0.2 daN

Gradeability

9 %, 10 %, 14 %, 15 %

Rated output

7.2 kW, 15 kW
(9.8 hp, 20.4 hp)

Maximum operating pressure

150 bar
(2,175.6 psi)

Oil flow

25 l/min
(6.6 us gal/min)

Noise level

59.7 dB

Description

The RBM20-25N3 Series of four-way reach trucks is an ideal choice if you're looking for a smart, flexible, and highly ergonomic reach truck that can deal with long or bulky goods with ease. Equally capable of handling long loads and standard pallets, the RBM20-25N3 Series offers lift heights up to 9.7 metres. As it's four-way and can carry long loads sideways, aisles can be kept to a minimum, allowing you to maximise storage space. With a long battery life and a suite of operator-focused features available, it makes lengthy shifts a breeze for both truck and driver. Exceptional all-round visibility and stability aides allow operators to work with greater confidence and safety. Combined with a top speed of 13 km/h this makes for an incredibly efficient and productive truck. Intelligent Cornering System Intelligent Cornering SystemThe truck senses the angle of a turn and reduces speed early. This makes for much safer handling with maximum stability and accurate, positive cornering. Stability Support System (S3) A comprehensive system for stability support, incorporating Mast Tilt Control. Hydraulic functions such as mast reach and mast tilt are automatically optimised along with a reach damping function to make pallet placement and retrieval safer and quicker. Soft Motion Using a finely tuned algorithm, the truck adjusts reach, tilt and sideshift speed automatically to greatly improve productivity and handling speed and work how the operator wants to work. MaxVision The mast and cabin have been fully optimised to give the operator the widest all-around view possible. This increases driver confidence, safety and productivity.
