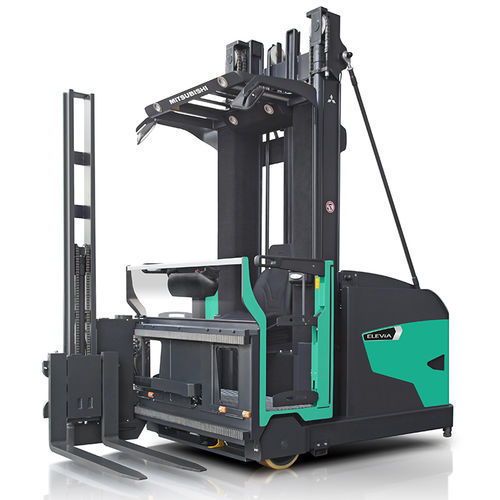

Very narrow aisle forklift ELEViA VNT11-20(XL) series
electricride-onhandling

very narrow aisle forklift
very narrow aisle forklift
very narrow aisle forklift
very narrow aisle forklift
very narrow aisle forklift
very narrow aisle forklift
very narrow aisle forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for very narrow aisles, pallet, order-picking
Other characteristics
high-performance
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 1,100 kg
(2,425.1 lb)

Lifting height

19 m
(62'04" )

Overall width

Min.: 1,000 mm
(39.4 in)

Max.: 1,700 mm
(66.9 in)

Overall length

Min.: 3,140 mm
(123.6 in)

Max.: 3,840 mm
(151.2 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Max.: 9,400 kg
(20,723.5 lb)

Min.: 4,900 kg
(10,802.7 lb)

Ground clearance at center of wheelbase with load

40 mm
(1.6 in)

Turning circle radius

Min.: 2,080 mm
(81.9 in)

Max.: 2,445 mm
(96.3 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

Min.: 0.3 m/s
(0.984 ft/s)

Max.: 0.6 m/s
(1.969 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated output

5 kW, 7 kW
(6.8 hp, 9.5 hp)

Description

A true VNA specialist, the ELEViA series is optimised for easy order picking and pallet handling in narrow aisle spaces. With intuitive controls, an ergonomic, spacious cabin and excellent visibility, ELEViA is an operator's dream. Modular design and engineering make it highly configurable. Each model in the range is fully optimised for a specific type of application, making for a comprehensive and versatile selection of trucks. The 1.1–1.3-tonne models are available with 48 V or 80 V electrical systems, while larger models are 80 V only. Highly optimised VNA design Every ELEViA is a VNA specialist, offering excellent productivity in narrow aisles with low maintenance requirements. Easily accessible maintenance points Servicing is always quick and straightforward, minimising any potential downtime. Choice of 7 different capacities Each model in the range has been highly optimised to fulfil a different specific role, offering a complementary feature set for VNA operations. Lift heights up to 19 metres High racking is easily reachable, allowing for greater use of available warehouse space. Fork positioner Fork spacing is easily and simply adjusted by the operator to suit the situation at hand.
