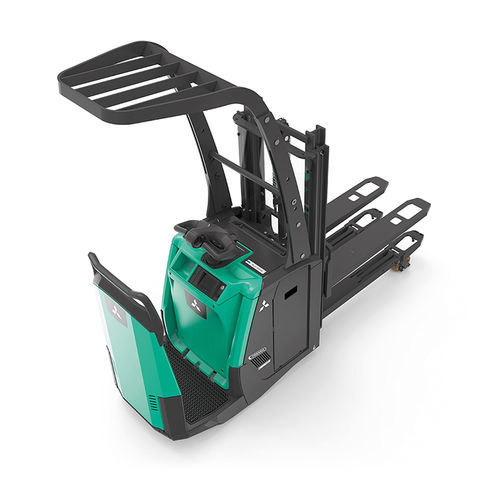

Double-pallet stacker truck PREMiA EM PBV/PBF20N3D(R)(S) series
electricstand-on24 V

Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 2
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 3
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 4
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 5
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 6
Double-pallet stacker truck - PREMiA EM PBV/PBF20N3D(R)(S) series - Mitsubishi Forklift Trucks - electric / stand-on / 24 V - image - 7
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
stand-on
Voltage
24 V
Applications
transport, for warehouse, loading, double-pallet, unloading, for industrial applications, transfer
Other characteristics
rugged, high-performance
Carrying capacity

1,000 kg, 2,000 kg
(2,204.6 lb, 4,409.2 lb)

Lifting height

1,700 mm, 2,000 mm
(66.93 in, 78.74 in)

Height of mast when lowered

1,320 mm, 1,470 mm
(52 in, 57.9 in)

Height of mast when raised

2,170 mm, 2,470 mm
(85.43 in, 97.24 in)

Overall width

740 mm
(29.1 in)

Overall length

2,142 mm, 2,500 mm, 2,532 mm
(84.3 in, 98.4 in, 99.7 in)

Fork width

180 mm
(7.1 in)

Fork length

1,170 mm
(46.06 in)

Fork thickness

70 mm
(2.76 in)

Turning circle radius

1,902 mm, 2,260 mm, 2,292 mm
(74.9 in, 89 in, 90.2 in)

Battery capacity

Min.: 270 Ah

Max.: 400 Ah

Motor power traction

2.4 kW
(3.263 hp)

Travel speed

10 km/h
(6.21 mph)

Lifting speed

0.2 m/s, 0.4 m/s
(0.656 ft/s, 1.312 ft/s)

Weight

1,050 kg, 1,220 kg
(2,314.85 lb, 2,689.64 lb)

Description

The PREMiA EM double pallet handler is built for highly demanding work where performance and precision are key. It's available in both fixed platform and folding platform configurations with fast acceleration and drive speeds, and market-leading lifting and lowering speeds. The initial lift feature allows for higher ground clearance when needed and allows for the transportation of stacked pallets, doubling productivity, and reducing the time needed to move them from A to B. It's an ideal choice for pallet transfer work in busy logistics terminals, industrial warehouses, and for loading and unloading vehicles thanks to a host of cutting-edge features. Market-leading lifting and lowering speeds means the time per pallet moved stays as low as possible, giving a much lower total cost of operation. Robust construction and legendary Mitsubishi Forklift Trucks reliability means it can stand up to the most strenuous shifts and keep uptime at a maximum. But high performances and long shifts aren't achived if the operator isn't at their best. The patented DriveSteady and TractionPlus systems ensure outstanding drive wheel pressures, excellent shock absorption and side stability when cornering, making for a smoother, safer ride throughout. The best-in-class ErgoSteer tiller head makes operation simple, comfortable, and intuitive for operators, keeping them fully focused on the task in hand. And with the option of drive speeds up to 12.5 km/h, the PREMiA EM DPH is truly a warehouse powerhouse.
