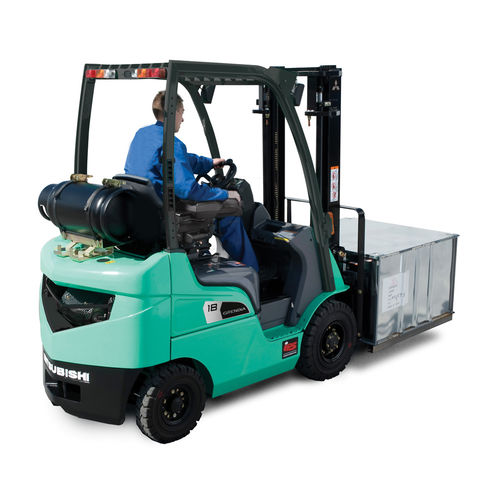

Counterbalanced forklift GRENDiA ES FG15-35(C)N series
LPGride-onhandling

Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 2
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 3
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 4
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 5
Counterbalanced forklift - GRENDiA ES FG15-35(C)N series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, precision
Other characteristics
4-wheel, counterbalanced, high-speed
Carrying capacity

Min.: 1,500 kg
(3,306.9 lb)

Max.: 3,500 kg
(7,716.2 lb)

Lifting height

3,270 mm, 3,290 mm, 3,300 mm
(128.74 in, 129.53 in, 129.92 in)

Overall width

Min.: 1,065 mm
(41.9 in)

Max.: 1,690 mm
(66.5 in)

Overall length

Min.: 3,330 mm
(131.1 in)

Max.: 3,865 mm
(152.2 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,490 kg
(5,489.5 lb)

Max.: 4,630 kg
(10,207.4 lb)

Axle loading with maximum load front

Min.: 3,510 kg
(7,738.2 lb)

Max.: 7,180 kg
(15,829.2 lb)

Axle loading with maximum load rear

Min.: 460 kg
(1,014.1 lb)

Max.: 950 kg
(2,094.4 lb)

Axle loading without load front

Min.: 990 kg
(2,182.6 lb)

Max.: 1,710 kg
(3,769.9 lb)

Axle loading without load rear

Min.: 1,430 kg
(3,152.6 lb)

Max.: 3,000 kg
(6,613.9 lb)

Height of mast when lowered

2,140 mm, 2,150 mm, 2,170 mm, 2,300 mm
(84.3 in, 84.6 in, 85.4 in, 90.6 in)

Free lift

115 mm, 140 mm, 145 mm
(4.5 in, 5.5 in, 5.7 in)

Overall height with mast raised

4,330 mm, 4,340 mm, 4,360 mm
(170.5 in, 170.9 in, 171.7 in)

Height to top of overhead guard

2,140 mm, 2,145 mm, 2,165 mm, 2,175 mm
(84.3 in, 84.4 in, 85.2 in, 85.6 in)

Seat height

930 mm, 940 mm, 990 mm
(36.6 in, 37 in, 39 in)

Tow couplig height

290 mm, 310 mm, 330 mm, 340 mm
(11.4 in, 12.2 in, 13 in, 13.4 in)

Length to fork face

Min.: 2,260 mm
(89 in)

Max.: 2,795 mm
(110 in)

Fork carriage width

920 mm, 1,000 mm
(36.2 in, 39.4 in)

Ground clearance under mast with load

110 mm, 115 mm, 135 mm, 150 mm
(4.3 in, 4.5 in, 5.3 in, 5.9 in)

Ground clearance at center of wheelbase with load

135 mm, 165 mm, 170 mm
(5.3 in, 6.5 in, 6.7 in)

Turning circle radius

Min.: 1,950 mm
(76.8 in)

Max.: 2,440 mm
(96.1 in)

Minimum distance between centres of rotation

555 mm, 715 mm, 780 mm
(21.9 in, 28.1 in, 30.7 in)

Travel speed

19 km/h, 19.5 km/h
(11.8 mph, 12.1 mph)

Lifting speed

Min.: 0.4 m/s
(1.312 ft/s)

Max.: 0.7 m/s
(2.297 ft/s)

Lowering speed

Min.: 0.4 m/s
(1.312 ft/s)

Max.: 0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Min.: 16,700 N

Max.: 21,800 N

Rated output

41 kW, 46.9 kW
(55.7 hp, 63.8 hp)

Rated speed

1,600 rpm, 1,800 rpm
(10,053.1 rad.min-1, 11,309.7 rad.min-1)

Maximum operating pressure

180 bar
(2,610.7 psi)

Oil flow

60 l/min, 73 l/min
(15.9 us gal/min, 19.3 us gal/min)

Noise level

79 dB

Description

Developed to help your operator achieve maximum productivity, while minimising running costs, GRENDiA ES sets the highest standards for IC engine counter­balance forklift trucks. With its exceptional fuel economy, durable components and low-maintenance design, GRENDiA makes perfect business sense. What's more, it comes with a package of advanced features, fitted as standard, that offers true value for money. Fast, stable and exceptionally powerful, GRENDiA forklift trucks offer a potent combination of high efficiency and low emissions in line with Euro Stage V regulations. To that, Mitsubishi Forklift Trucks has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions. Integrated Presence System (IPS2) Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Vehicle control module This high-power 'brain' allows multiple engine and electronic functions to occur simultaneously, constantly adjusting and optimising performance: ensuring industry-leading power and fuel consumption. Sealed chassis with full belly guard and inner wheel covers Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles. Advanced industrial engine Industrial-designed engine delivers industry-leading, high torque and power at low revolutions for a long, trouble-free life.
