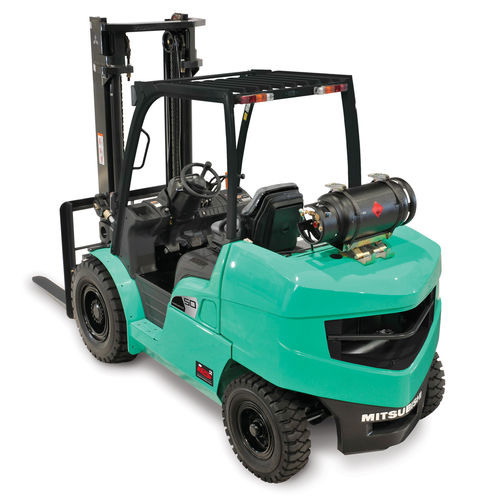

Counterbalanced forklift GRENDiA EX FG40-55(C)N3 series
LPGride-onhandling

Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 2
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 3
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 4
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 5
Counterbalanced forklift - GRENDiA EX FG40-55(C)N3 series - Mitsubishi Forklift Trucks - LPG / ride-on / handling - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, counterbalanced, low-noise
Carrying capacity

4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)

Lifting height

3,300 mm
(129.92 in)

Overall width

Max.: 1,965 mm
(77.4 in)

Min.: 1,415 mm
(55.7 in)

Overall length

Max.: 4,580 mm
(180.3 in)

Min.: 4,220 mm
(166.1 in)

Load center distance

500 mm, 600 mm
(19.7 in, 23.6 in)

Weight without load

5,860 kg, 6,270 kg, 6,780 kg, 7,240 kg, 7,570 kg
(12,919.1 lb, 13,823 lb, 14,947.3 lb, 15,961.5 lb, 16,689 lb)

Axle loading with maximum load front

8,940 kg, 9,680 kg, 10,570 kg, 10,990 kg, 11,710 kg
(19,709.3 lb, 21,340.7 lb, 23,302.9 lb, 24,228.8 lb, 25,816.1 lb)

Axle loading with maximum load rear

920 kg, 1,090 kg, 1,210 kg, 1,250 kg, 1,360 kg
(2,028.3 lb, 2,403 lb, 2,667.6 lb, 2,755.8 lb, 2,998.3 lb)

Axle loading without load front

2,610 kg, 2,750 kg, 2,870 kg, 3,130 kg, 3,190 kg
(5,754.1 lb, 6,062.7 lb, 6,327.3 lb, 6,900.5 lb, 7,032.7 lb)

Axle loading without load rear

3,250 kg, 3,520 kg, 3,920 kg, 4,050 kg, 4,440 kg
(7,165 lb, 7,760.3 lb, 8,642.1 lb, 8,928.7 lb, 9,788.5 lb)

Height of mast when lowered

2,320 mm, 2,400 mm
(91.3 in, 94.5 in)

Free lift

150 mm, 160 mm
(5.9 in, 6.3 in)

Overall height with mast raised

3,920 mm, 4,000 mm
(154.3 in, 157.5 in)

Height to top of overhead guard

2,295 mm
(90.4 in)

Seat height

1,082 mm
(42.6 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

3,000 mm, 3,130 mm, 3,170 mm, 3,310 mm, 3,360 mm
(118.1 in, 123.2 in, 124.8 in, 130.3 in, 132.3 in)

Fork carriage width

1,190 mm
(46.9 in)

Ground clearance under mast with load

150 mm
(5.9 in)

Ground clearance at center of wheelbase with load

227 mm
(8.9 in)

Turning circle radius

2,580 mm, 2,730 mm, 2,760 mm, 2,890 mm, 2,940 mm
(101.6 in, 107.5 in, 108.7 in, 113.8 in, 115.7 in)

Travel speed

22 km/h, 22.5 km/h
(13.7 mph, 14 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 28,000 N

Min.: 17,200 N

Gradeability

Max.: 30 %

Min.: 22 %

Rated output

72 kW
(97.9 hp)

Rated speed

2,450 rpm
(15,393.8 rad.min-1)

Maximum operating pressure

191 bar
(2,770.2 psi)

Oil flow

80 l/min
(21.1 us gal/min)

Noise level

84 dB

Description

Built to work as hard as you do, GRENDiA EX promises reliable, class-leading performance - whatever the challenges. Tried and tested in the toughest applications, this no-nonsense design builds on the successes of its predecessors - delivering optimal performance. GRENDiA EX's sophisticated Euro Stage V compliant engines, coupled with its long-life design, keeps GRENDiA's running costs and maintenance demands low - for maximum efficiency and productivity. Green inside and out, GRENDiA EX keeps noise and exhaust emissions to a minimum, while delivering improved overall economy. Integrated Presence System (IPS2) Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. 3-way catalytic converter (LPG) Uniquely fitted to all LPG models in line with the Mitsubishi Forklift Trucks uncompromising commitment to safety. Ensures industry-leading low fuel consumption, low harmful emissions and high-power performance. Sealed chassis with full belly guard and inner wheel covers Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles. Automotive-style pedals Offering the optimum pedal angle, operators enjoy their easy use and good control - without leg strain. High productivity design Low noise and vibration levels from the powertrain keep fatigue at bay for comfortable, distraction-free operations.
