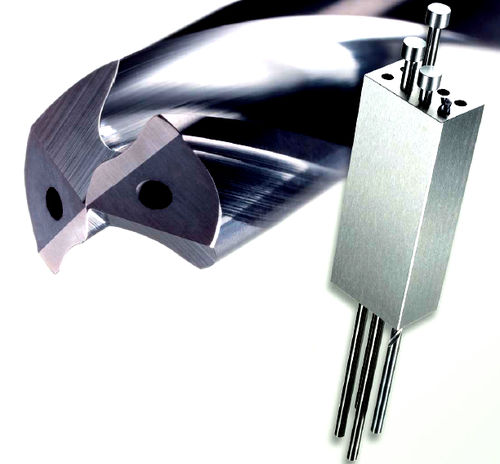

Solid drilling tool MHS series
multi-purposecarbidedeep hole

solid drilling tool
solid drilling tool
Add to favorites
Compare this product


Characteristics

Type
solid
Drilled material
multi-purpose
Drill bit material
carbide
Other characteristics
deep hole, twist
Diameter

Min.: 3 mm
(0.12 in)

Max.: 12 mm
(0.47 in)

Length

Min.: 70 mm
(2.76 in)

Max.: 360 mm
(14.17 in)

Description

Solid Carbide Drill for hardened steel For steel up to 60HRC For highest hole Quality Now available from ø0.95-ø12.0 mm / up to LD 30xD Specially developed for hardened steel, ultra high performance carbide drills for standard and deep holes up to l/d 30. Ideal for eliminating a pre-drilling process because a high quality finished hole can be made directly in the hardened mould material. MHS drills have a specially designed "wave" type cutting edge and point geometry for improved penetration and a decrease in tool load, especially for extra deep hole applications. The other important faeature is the 25º helix angle of the flute, designed for ultra efficient chip clearance and extra strength compared to conventional flutes. Additionally, a new double margin flute is the latest feature to provide the highest accuracy, smooth chip evacuation and smooth surface finishes necessary for ejector pins.

VIDEO
