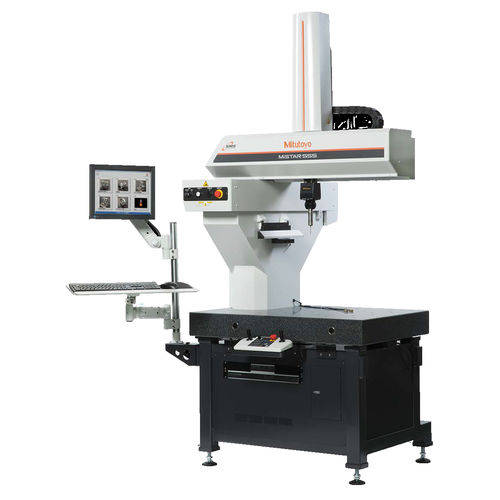

Gantry coordinate measuring machine MiSTAR 555

• An accuracy-guaranteed temperature range of 10 to 40 °C is possible thanks to a combination of technologies, such as the symmetric guide structure, uniform material and temperature compensation. • A contamination resistance more than 2 times better than Mitutoyo's conventional machine is achieved by adopting a newly developed environment-resistant absolute scale*. * Absolute scale that provides an absolute XYZ-values relative to an internal reference point for each coordinate captured. This eliminates the need for an initialization operation. • The footprint is reduced to about 80% compared with that of the conventional moving bridge model by adopting the horizontal-arm structure and installing the CMM controller and PC under the measuring table.
