Measurement touch probe LG100 series
compacthigh-precisionhigh-speed

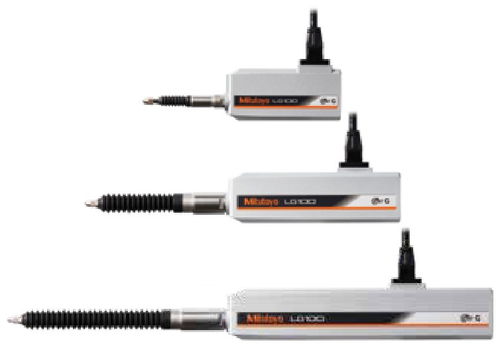

Measurement touch probe - LG100 series  - MITUTOYO - compact / high-precision / high-speed
Measurement touch probe - LG100 series  - MITUTOYO - compact / high-precision / high-speed
Add to favorites
Compare this product


Characteristics

Type
measurement
Other characteristics
compact, high-precision, digital, high-speed
Measuring range

10 mm, 25 mm
(0.3937 in, 0.9843 in)

Description

Precision and accuracy by the automated assembly and inspection markets, are guarante«i. Thanks to our expertise as a manufacturer of measuring instruments, repeatability in the full measurement range (20) and narrow-range precision are also guaranteed. Environment resistance Sliding durability of more than 50 million times*, with protection level of IP67G. Highly oil-resistant material is in the rubber cap and cable sheath, so it can be used even in harsh environments. * 10 mm range models (Actual value from in-house tests) Function of reference point detection Reference signal output functions are featured throughout this series When incorporating into a the master setting value is easy to set and is retained after shutdown. Re-setting the origin is possible when there are problems such as excesive speed, ensuring excellent reliability. Can be connected with 2 types of counter The ideal counter can be selected according to the application it can be connected to a compact counter (EJ counter) suitable for inline use or building into a device or a multifunctional counter (EH counter)* suitable for use in measurement rooms. A conversion plug is for ccnnecting to multifunctional counter (EH ccxnter). Combining small form and ease of use High-speed and spacesving, delivering production site visualization, improved prcxiuctivity, and information feedback. Up to 8 compact counters (EJ counters) can be linked providing the capacity to connect up to 16 gages. On a DIN rail, each unit can be connected directly without using cables, so it takes up minimal space.
