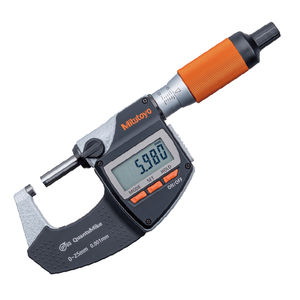

Outside micrometer 293 series
threaddigitalprecision

outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
outside micrometer
Add to favorites
Compare this product


Characteristics

Measurement
outside
Applications
thread
Display
digital
Other characterisitcs
precision, IP65, ratchet
Measuring range

Max.: 100 mm
(3.937 in)

Min.: 0 mm
(0 in)

Resolution

0.001 mm
(0.00004 in)

Description

• Advanced pioneering technology has created the next generation of micrometer, the most revolutionary advance in micrometer technology since James Watt invented the instrument. • Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per revolution of the thimble. This increase in thread lead has been made possible thanks to new high precision thread-cutting and testing techniques. • QuantuMike is equipped with a function lock feature to prevent the origin point being moved by mistake during measurement. • A graduated scale is provided on the sleeve for use with a reference mark on the thimble so that every millimeter displacement can be checked to provide extra confidence. • A statistical process control system and a measurement network system can be established to share information regarding quality with a model equipped with the data output function. (Refer to page A-3 for details.) • There is a lineup of convenient Interface Input Tools which enable the conversion of measurement data to keyboard signals and directly input them to cells in off-the-shelf spreadsheet software such as Excel. (Refer to page A-5 for details.)
