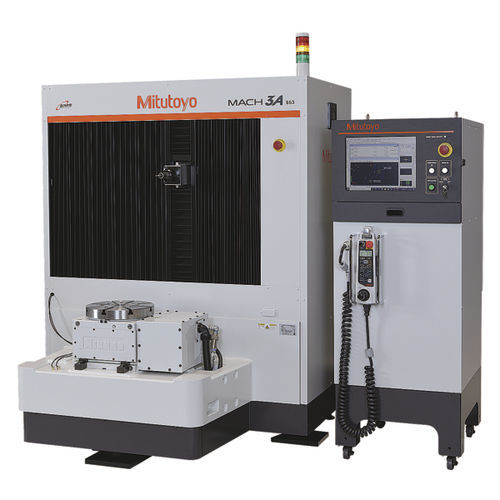

Coordinate measuring machine with horizontal arm MACH-3A 653

workshopproduction linecontact

The MACH-3A 653 is a horizontal spindle type with index table coordinate measuring machine and is designed for fast and precise inline measurement. It grants outstanding throughput will allow you to boost up your measuring process. His small foot print and protection against rough production environments makes him suitable for workshop and inline production measurements. Main benefits: •Super High speed and acceleration •Drastic reduction of the measurement cycle compared with any conventional CMM •All in One Compact design to minimize the foot print in the workshop and to improve the dust resistance •Work piece handling and routing in the same posture as for other horizontal spindle machining centres •Control unit and PC are installed in the dust-tight rack with heat exchanger •Ease-of-maintenance construction and air-free operation using high accuracy linear ball bearing •Temperature compensation from 5°C to 40°C •Glass scale with high resolution 0,1 μm •Safety joystick box with deadman switch and speed adjustment •UC400K controller supporting SMS functionality (Smart Measuring System) •Optional with index table for higher flexibility
