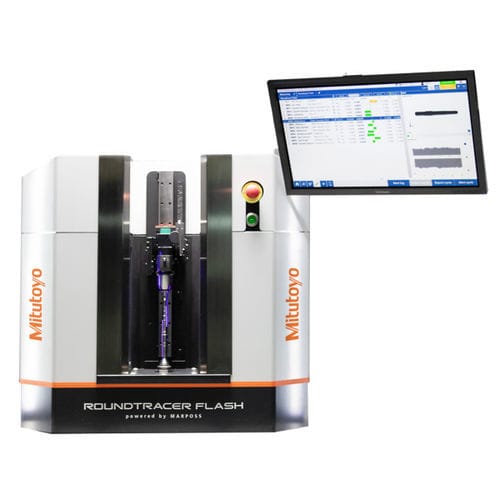

Shape measuring system Roundtracer Flash

roundnessdimensionaloptical

The Roundtracer Flash is a flexible optical measuring system, fast and precise. The instrument is a good solution for accurate quality control in a laboratory as well as in the production environment.   The Roundtracer Flash offers you following benefits: • Dimensional, position, form analysis in static or dynamic mode. • Image sensors integrated in a fixed position across the product structure to cover the entire measurement range. • Less mechanical stress • Side-by-side 2D image architecture • Short cycle time • One-click measuring cycle activation • Graphical user interface via touchscreen monitor • Easy part loading • IO Communication via Profinet, Profibus, Ethernet IP • Machine tool feedback compensation Extensive toolkits to measure: • Thread for fastener and medical industry • Camshafts • Impellers including blade-by-blade analysis
