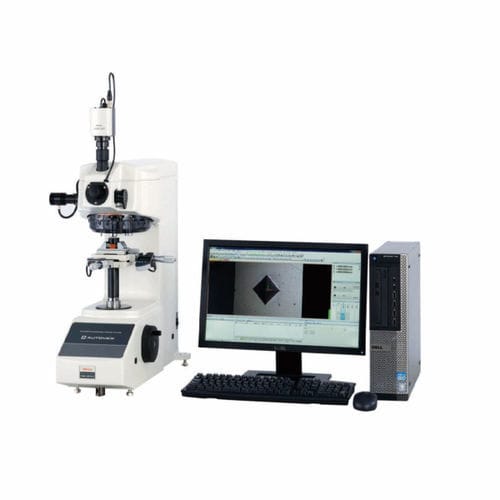

Micro Vickers hardness tester 810-404E

benchtopfor quality controlautomatic

This is a high performance hardness testing machine that uses advanced technology and is ideal for quality control. The HM-210/220 series offers you the following benefits: • Software control types • Its electromagnetic generation system enables nonstop setup for testing force. • A high performance optical system provides a high quality image of the indentation load. • A long working distance greatly reduces the possibility of collision. • A range of six different objectives: 10X, 20X, 50X and 100X for measuring indentation images, and 2X and 5X for enabling wide-range overview images for positioning of indentation patterns. • LED lighting gives you an observation image in natural colour, with better contrast, as well as longer operation due to lower power consumption.Software AVPAK-20 offers a multitude of options for automatic measurement and statistics. • Test forces starting from as low as 0,4903 x 10-3N (0,05gf) as well as standard test forces.
