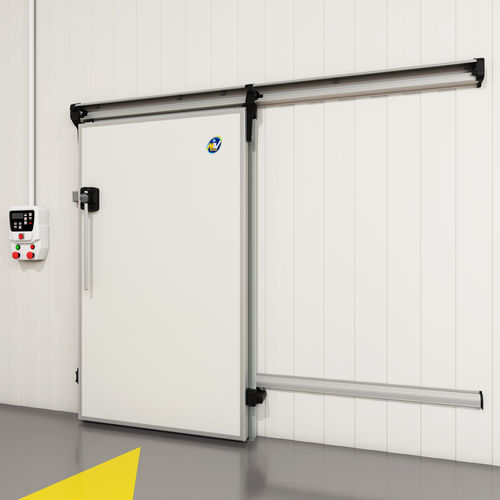

Sliding door 970BT

swingstainless steelaluminum

970BT (T from 0 to -28°C) INDUSTRIAL SLIDING REFRIGERATOR DOOR FOR NEGATIVE TEMPERATURE Door suitable for cold rooms for freezing and storing food, foodstuffs and everything that must be stored at a low temperature. 120mm Door Leaf Indoor Installation Embracing Frame STANDARD CONSTRUCTION - Sliding door for internal aplication in negative temperature rooms Installation on panel or masonry wall 90 mm or 120 mm thick aluminum door leaf Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional) Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density Double lower and perimetral EPDM gasket. Heating cable applied inside the gaskets or inside the door frame Door leaf supported by brackets and pulleys (made of technopolymer) sliding on anodized aluminum guide rail (with rail cover) Lower guide made of anodized aluminum, panel mounted Sliding system suitable for small and medium-sized doors Original MIV design internal and external lever handle “L” shape PVC frame (100mm length and 25mm thick) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe) Heated aluminum corner doorsill Maximum net opening L.160 x H.250
