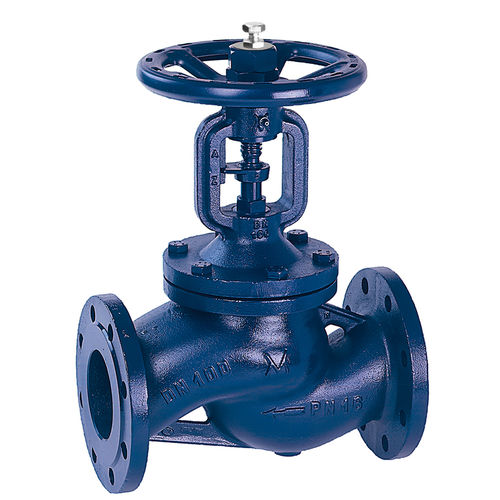

Valve with bellows seal 61 seriesglobewith handwheelflow control
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- flow control
- Media
- for hot water, for oil, for air, for steam
- Body
- flange, stainless steel, carbon steel, cast iron, graphite
- Applications
- for heating systems, for tank, for boiler
- Other characteristics
- standard, locking, with bellows seal
- DN
Max.: 200 mm
(7.874 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 9.6 bar
(139.2 psi)- Temperature
Max.: 300 °C
(572 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 664 m³/h
(23,448.94 ft³/h)Min.: 4.6 m³/h
(162.45 ft³/h)
Description
Streamlined flow valves, Streamlined flow valves bellows type, Streamlined flow valves bellows type on cast iron PN 16 (EN-GJL-250)
Outside screw streamlined flow valve series PN 16. Maintenance free. EN-GJL-250 cast iron body and yoke. Stainless steel stem, bellows and sealing seats. Graphite + stainless steel gaskets. Carbon steel handwheel. The valve is standard provided by: position indicatori, safety backseat on the stem, rise limiter, lubricator, locking set screw. Connection flanges dressed and drilled according to EN 1092-2 PN 16 with rised face.
