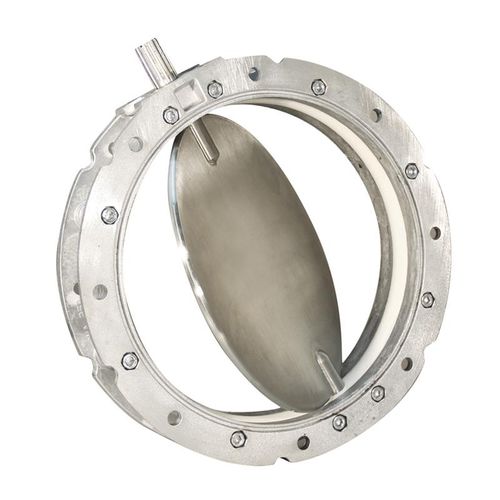

Butterfly valve SVAH seriesmanualpneumaticfor control
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- manual, pneumatic
- Function
- for control
- Body
- double-flange, cast aluminum
- Applications
- chemical, for powders
- Fluid specification
- for powders
- DN
Min.: 100 mm
(3.937 in)Max.: 400 mm
(15.748 in)- Temperature
Min.: -25 °C
(-13 °F)Max.: 150 °C
(302 °F)
Description
Butterfly valves suitable for intercepting powdered products
- Size DN100 - 150 - 200 - 250 - 300 - 350 - 400
- 2 half-bodies in cast aluminum with double flange: identical upper and lower flange
- Possibility of installing the fitting for flexible connection SFU
- Pressure / vacuum seal up to 0.2 bar
- Disc in aluminum or stainless steel AISI 304 (upon request in AISI 316)
- NBR gasket (upon request suitable for contact with food) - HNBR Therban - Viton
- Gasket profile: for sealing only on the disc or covering the flanges
- DN5482 splined drive shaft or ISO 5211 square, both in standard or extended length
- ATEX certified version upon request
- Manual, motorized or pneumatic actuators
