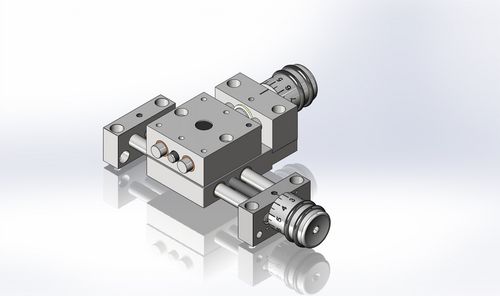

Linear positioning table KT7312-KR-PT2512

manual2-axis

The KT2512-L-PT7312-SKL, manufactured by MM-Südwest Industrievertretung, is a 2-axis manual linear positioning table. The device is used to position all components and units such as stops, sensors,limit switches, tables, etc. It can also format the settings of machines. The series consist of a self-locking spindle and a < 0.02mm backlash. After adjustment, it does not need any clamping. The rails of the device are rugged-design. The table uses a modular system. The device is constructed using a bearing block and slides made of anodised aluminum. The guide pillars and spindle are made of stainless steel. In adjusting the position of the table slide, just turn the scale knob. The spindle can be clamped on the bearing block at the side using a bolt.
