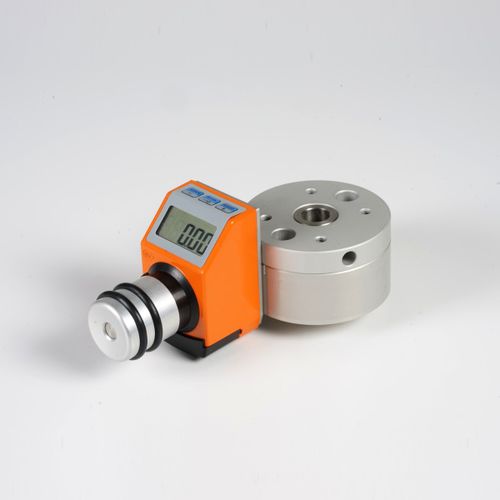

Rotary positioning stage DT36008-PA(E), DT36012-PA(E), DT36025-PAE

manual1-axiswith position indicator

If you turn the adjusting knob clockwise, you will rotate the turn table counter clockwise as well by means of a worm gear. In addition to this, when it comes to the accurate rotary positioning, it is suitable for all component types and units, including tables, sensors, stops, cameras and even complete assemblies. The format settings on machines include a construction for the base and rotary stage in anodized aluminum, while the worm gear comes in hardened polished steel. The worm wheel is made of bronze, while the bearings and the bearing bronze are other advantages. The mechanical position indicator comes in plastic, while the display is available in 0.1 increments. The values displayed are adjustable by driving ring, while the direct display of the rotation angle and the lack of scales on the turntable are other advantages. Offset, incremental and reset are possible via the keyboard, while the large LCD display is also worth mentioning.
