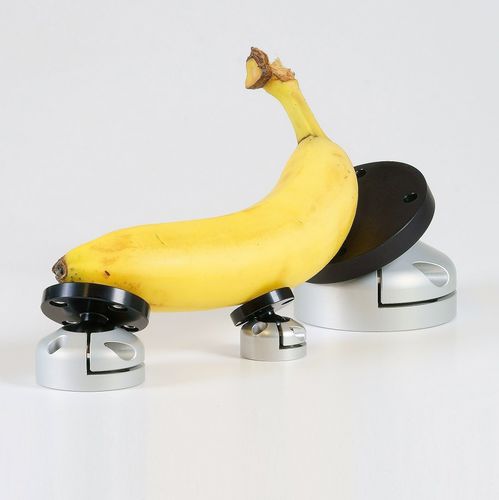

Swivel mount GK series

Swivel mounts - Individual free-form-workpiece fastening - option: clamping open and close without tools using clamping levers and handle screws. - free, fixable tilting and rotating connection Ball joint head: attach components in an articulated, rotatable and tiltable manner The free positioning that is not based on coordinates is the area of application for our swivel mounts. Equipped with a ball head and clamping screw or clamping lever, the joint head can be rotated through 360 ° around an axis that can be tilted by ± 30 °. With these properties, our ball joint head is suitable for tasks such as the positioning of cameras, displays, laser beamers, sensors, lighting spots and much more. Furthermore, free-form workpieces can be variably supported with our ball clamping pieces for clamping or fastening. We supply swivel mounts in four different sizes from stock, starting with the swivel mounts GK04 with contact surfaces of 29 millimeters in diameter, to the GK25 with 150 millimeters in diameter.
