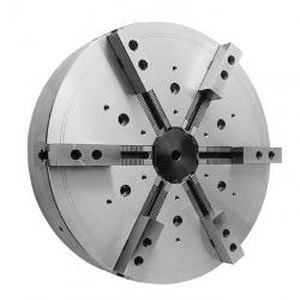

Power chuck HH6J series6-jawthrough-holehigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 6-jaw
- Other characteristics
- through-hole, machining, high-speed
- Rotational speed
355 rpm, 450 rpm, 500 rpm, 940 rpm
(2,230.53 rad.min-1, 2,827.43 rad.min-1, 3,141.59 rad.min-1, 5,906.19 rad.min-1)- Gripping force
147 kN, 196 kN, 218.5 kN
- Outer diameter
24 mm, 32 mm, 36 mm, 50 mm
(1 in, 1 in, 1 in, 2 in)
Description
Closed Center Sealed 6-Jaw Power Chuck
Six-jaw version of Matsumoto’s closed center power chucks. High-speed, high quality units thatare intended for use with your thin-walled workpieces. Like all Matsumoto units, cost effective and performance-oriented. Sealed to keep contaminants; water and chips out of chuck which reduces maintenance time.
BENEFITS
• Heavy-Duty
• High Rigidity and Accuracy
• MMK Original Double Slide Keys
• 5”-24” chuck sizes
