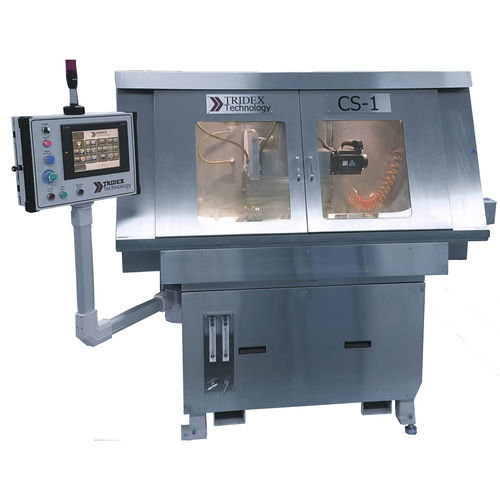

Rotary blade cut-off machine CS1-E

for metaltubebar

The Tridex CS1-E Burr Free Electrochemical (ECG) Cutoff Machine features completely burr-free cutting virtually eliminating the need for deburring or other corrective secondary operations and reducing scrap. Almost all metals can be cut burr-free with ECG making it an attractive option for cutting medical tubing. Increasing efficiency, the CS1-E can cut multiple bars or tubes per cycle only limited by the part diameter. Key Features • Compact, robust design for superior tolerance and finish. • Completely burr-free cuts virtually eliminate the need for deburring and other secondary operations. • Fast, precise cuts. • Easy setup and operation using color touchscreen HMI. • Cuts multiple tubes or bars per cycle. • Programmability and flexibility of changing cut lengths without operator input. • Offered in right-or-left hand configuration to create a work cell with one operator running two machines. • All stainless construction including full access stainless splash guard and electrolyte tank. • No painted surfaces. • Fixtures and jobs can be changed in one minute. • All feed components are protected from electrolyte and grit. • No mechanical adjustments. Specifications • Cutting Capacity – Length: min .100” (2.5mm) no maximum • Positioning Accuracy: 0.0004” (0.01mm) • High Precision Spindle: Ceramic Bearings and Air Purge • Control: Operator pendant color touchscreen • Fixtures: Quick change – no tools required • Electrolyte Supply Tank: 50 Gallon (200 Liter) Stainless Steel • Safety Standards: Meets CE and ISO-13849.1 • Spindle Motor: 5HP direct drive servo motor
