Wire payoff stand F8G-2N 80/100Y
Add to favorites
Compare this product
Characteristics
- Type
- for wires
Description

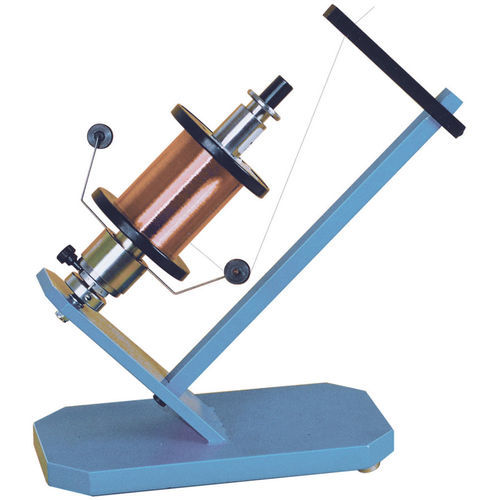

Flyer Payoff for frame mounting with center axis to carry the spool, positioning by FastLock unit.
Sensible tension by hysteresis brake adjustment,
for spools Ø 80-100 mm
F8G-2N100/150Y
Flyer Payoff as above
but for spools Ø 100-150 mm
Flange Ø: 80 - 150 mm
Ø Cu-, Al wire: 0,05 - 0,20 mm
Ø Steelwire hard: max. 0,1 mm
Ø Steelwire soft: max. 0,15 mm
Wire speed: max. 200 m/min
Wire tension: min. 0,2 N, max. 2 N
