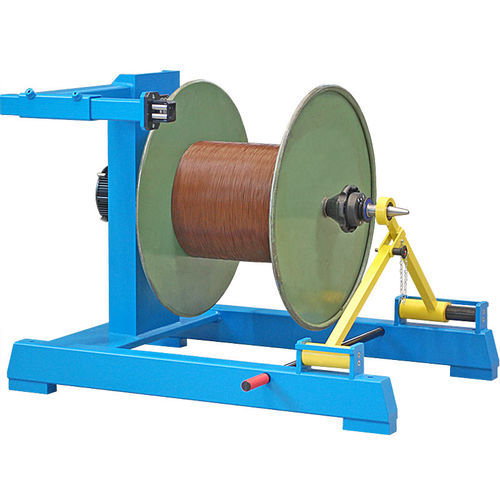

Wire payoff stand AT-450-630Y
Add to favorites
Compare this product
Characteristics
- Type
- for wires
Description
This Tangential Payoff is equipped with a hysteresis brake and and a free payoff without a dancer, with stabilizer especially for thin shafts or spools with small core hole but a high weight.
Optionally with magnetic powder brake for high tensions
Flange Ø: 500 - 800 mm
Ø Cu-, Al wire: 1,0 - 4,5 mm
Ø Steelwire hard: 0,5 - 3,0 mm
Ø Steelwire soft: 0,5 - 3,5 mm
Wire speed: max. 250 m/min
Wire tension: 5 N - 100 N
