Wire payoff stand AT12-120/350Y
Add to favorites
Compare this product
Characteristics
- Type
- for wires
Description

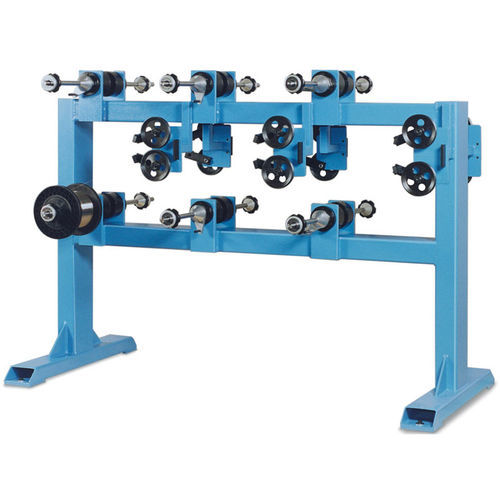

This payoff frame is equipped with hysteresis brakes and Easylock shaft lock system. Various pulleys, ceramic bushings as well as tungsten-carbide bushings are used depending on the wire material to be payed off.
Flange Ø: 120 - 350 mm
Ø Cu-, Al wire: 0,6 - 2,5 mm
Ø Steelwire hard: max. 1,2 mm
Ø Steelwire soft: max. 1,5 mm
Wire speed: max. 250 m/min
Wire tension: min. 3 N, max. 60 N
