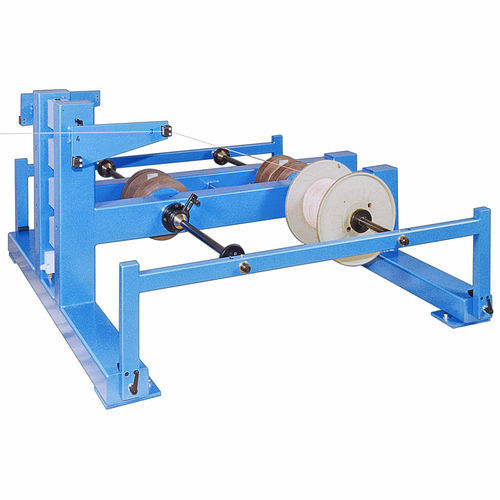

Wire payoff stand AT4-560P

This Payoff with 4 spoolheads is equipped with magnetic particle brakes. The advantage of this is, that the tension control can also be done with the payoff in operation. There is also a removable shaft-bearing-support for the spoolshaft. Flange Ø: 450 - 560 mm Ø Cu-, Al wire: 0,6 - 2,5 mm Ø Steelwire hard: max. 1,2 mm Ø Steelwire soft: max. 1,5 mm Wire speed: max. 300 m/min Wire tension: min.6 N, max. 150 N
