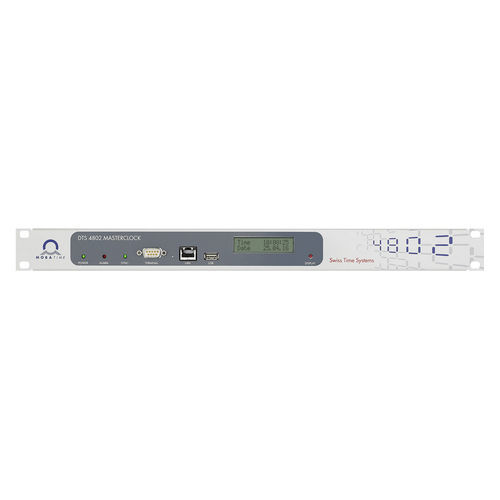

Master clock DTS 4802

synchronizedGPSslave

The Net Master Clock DTS 480x. masterclock is developed especially for network environments. It is able to control conventional impulse clocks, self-setting MOBALine or IRIG-B / AFNOR slave clocks and is used as an accurate NTP time reference (time server) for computer systems. The DTS 480x.masterclock can be synchronized by a time signal receiver (DCF 4500 or GPS 4500) and/or by NTP time servers (LAN / Internet). The DCF current loop output can be used to synchronize other devices (e.g. master clocks). The DTS 480x.masterclock is equipped with 4 alarm control inputs either to monitor other connected devices or to link external signals (e.g. from sensors) to switching commands. A serial RS 232 / RS 485 interface with configurable script file, to output special synchronization telegrams, completes the features of this multipurpose master clock. Alarms are signaled by a relay, with SNMP traps or by e-mail. By means of the management software MOBA-NMS, all DTS devices can be fully operated and monitored.
